Product Overview

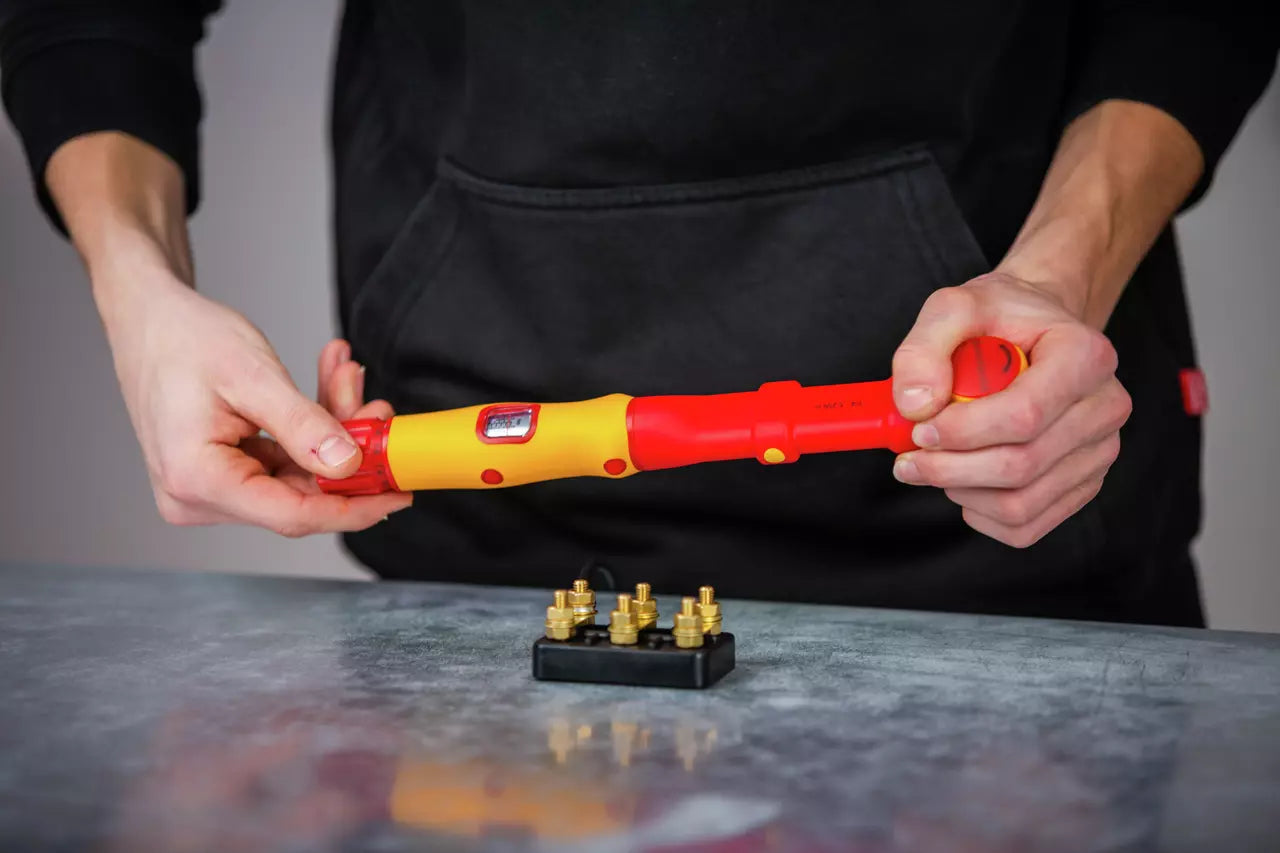

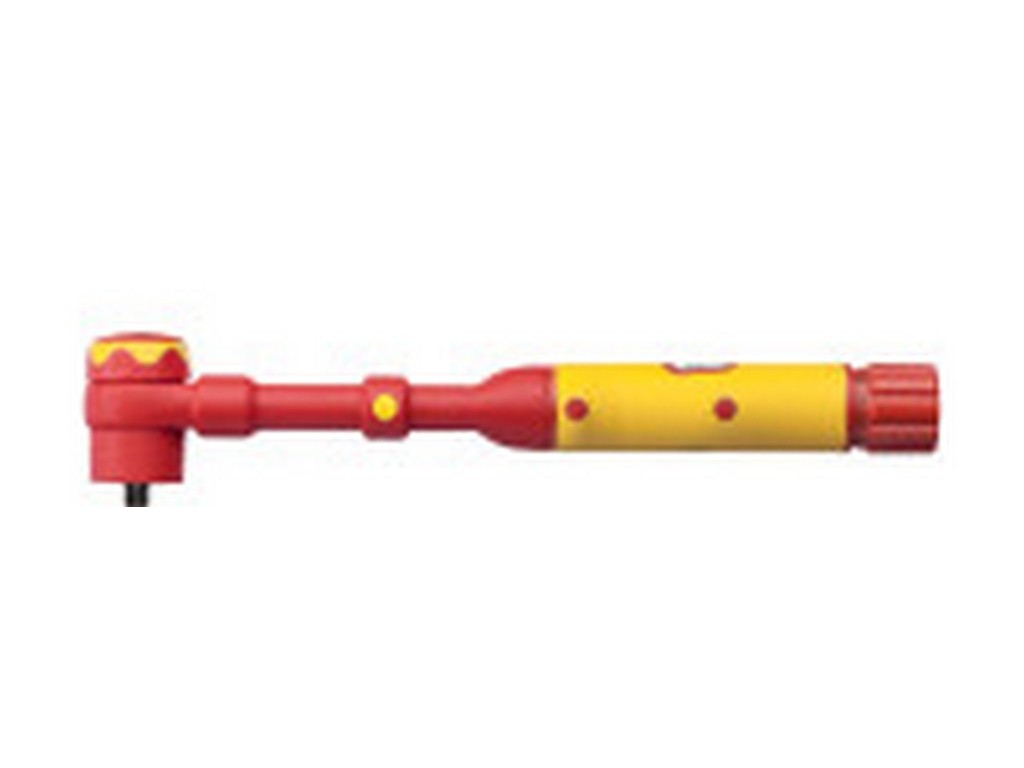

This torque wrench from WIHA (order no. 43126) is a 1/4" square drive torque key with an adjustable torque range of 5–25 Nm. The tool is insulated and individually tested to DIN EN/IEC 60900 for working on live parts up to 1,000 V AC. It has a switching angle of 10° and supports two rotation directions. The product comes with a factory inspection report and is intended for use only with insulated Wiha nut setters.Functional Features
- 1/4" square drive torque wrench (torque key)
- Adjustable torque range: 5–25 Nm
- Insulated, individually tested to DIN EN/IEC 60900 for work up to 1,000 V AC
- Switching angle: 10°; two rotation directions
- Declared accuracy: ±4 %
Documentation
Official product documentation includes technical overviews and classifications for torque tools from WIHA. For details and confirmation of the stated data, please refer to the manufacturer's datasheet:
View datasheet from manufacturer
Typical Applications
The product's features can be directly applied to torque application with insulated Wiha nut setters on live parts up to 1,000 V AC. It is intended for situations where adjustable torque between 5 and 25 Nm, as well as insulation and individual IEC/DIN testing, are required.
Specifications
- Manufacturer: WIHA
- Article number: 43126
- Type: 1/4" square drive torque wrench (torque key)
- Torque range: 5–25 Nm
- Insulation: Individually tested to DIN EN/IEC 60900 for work up to 1,000 V AC
- Switching angle: 10°
- Directions: Two rotation directions
- Dimensions: 288 x 59 x 38 mm
- Weight: 590 g
- Accuracy: ±4 %
- Usage restriction: Only for use with insulated Wiha nut setters
- Supplied with: Factory inspection report
- Certification/test: DIN EN/IEC 60900 (specified); VDE certification is mentioned in manufacturer documentation for this product group
