Product Overview

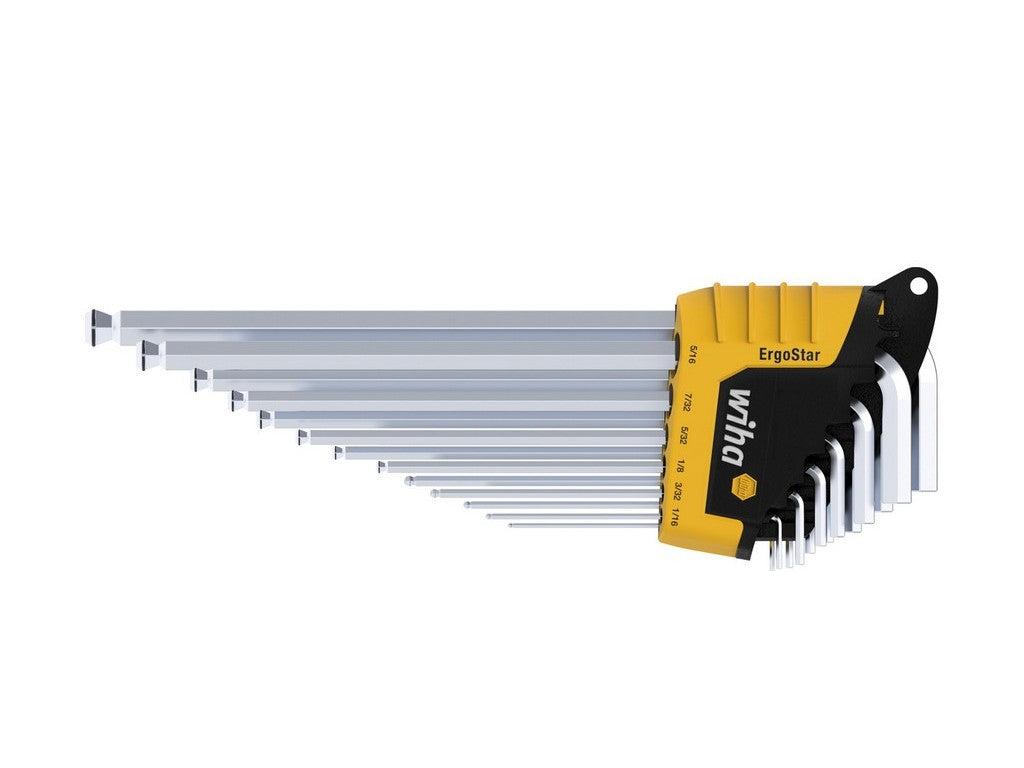

The WIHA 36521 is a 13-piece L-key set in an ErgoStar holder, inch design. The set includes matte chrome-plated L-keys with a hexagonal ball end and is based on ASME B18.3. The ErgoStar holder features a clamping mechanism and MagicRing® function (from 1/8") with a spring steel ring to secure the keys and hold hex inch screws without the need for magnets.
Function and Design
- The ErgoStar holder's clamping mechanism ensures that the keys do not fall out, regardless of whether the holder is open or closed.
- The MagicRing® function (from 1/8") with a spring steel ring secures both the keys and hex inch screws in the holder.
- The hexagonal ball end allows for screwdriving at angles up to 25°.
- The holder has a suspension bracket, allowing the set to be hung directly at the worksite.
Typical Applications
According to the manufacturer, the WIHA 36521 can be used for the following purposes:
- Tightening and loosening hex screws in hard-to-reach places.
- Removing countersunk inch screws.
- Inserting and tightening in horizontal, angled, or deep, blind threaded holes.
Specifications
- Manufacturer: WIHA
- Product Name: WIHA 36521
- Manufacturer Part Number: 36521
- EAN: 4010995365219
- Contents: 13 L-keys in ErgoStar holder (inch design)
- Material: Matte chrome-plated chrome vanadium steel
- Holder System: ErgoStar with clamping mechanism and MagicRing® (from 1/8") with spring steel ring
- Ball End: Hexagonal ball end, allows tightening up to 25°
- Product Dimensions (L x W x D): 234 x 84 x 34 mm
- Standard Reference: Based on ASME B18.3
- Set Components (sizes specified by manufacturer):
- 0.05" (29471)
- 1/16" (29472)
- 5/64" (29474)
- 3/32" (29473)
- 7/64" (29475)
- 3.2 mm x 1/8" (24302)
- 3.6 mm x 9/64" (24304)
- 4.0 mm x 5/32" (24303)
- 4.8 mm x 3/16" (24305)
- 5.6 mm x 7/32" (24306)
- 6.4 mm x 1/4" (24307)
- 7.9 mm x 5/16" (24308)
- 9.5 mm x 3/8" (24341)
