Product Overview

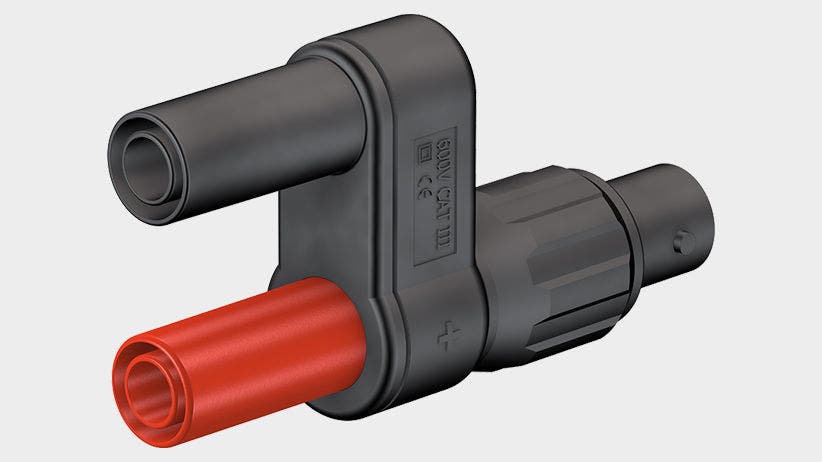

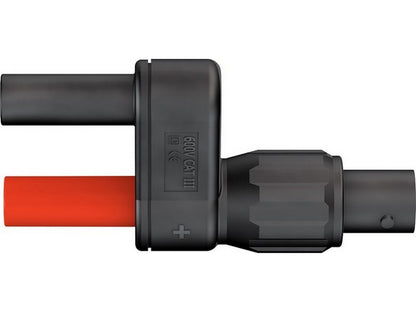

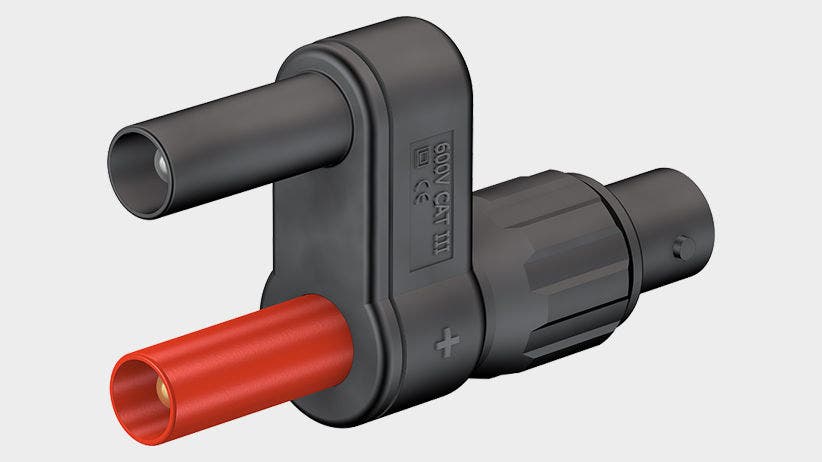

This two-pole touch-protected adapter from STAUBLI, 67.9537-21 (XF-SS/4), connects Ø 4 mm MULTILAM plugs to the BNC system. The 67.9537-21 (XF-SS/4) features a BNC female connection and Ø 4 mm MULTILAM plugs with a rigid insulating sleeve construction, and is specified as a test accessory in the manufacturer's documentation.Technical Characteristics
- BNC: BNC female
- Contacts: Ø 4 mm MULTILAM plugs with rigid insulating sleeve
- Inner conductor in BNC: contact socket in gold-plated brass
- Contact plating: Au/Ni (gold/nickel) for contact surfaces
- Rated values: 600 V, CAT III / 1000 V, CAT II
- Specified as test accessory according to IEC EN 61010-031
- Approvals: UL, CE
Documentation
See manufacturer's datasheetTypical Applications
- Used as a test accessory to connect Ø 4 mm MULTILAM plugs to BNC systems, as specified in the manufacturer's datasheet and in accordance with IEC EN 61010-031.
Specifications
- Manufacturer: STAUBLI
- Manufacturer's part number: 67.9537-21
- Model: XF-SS/4
- Type: Two-pole touch-protected adapter
- Connections: BNC female to Ø 4 mm MULTILAM plugs
- Inner conductor material (BNC): Gold-plated brass
- Contact surface treatment: Au/Ni
- Rated values: 600 V (CAT III), 1000 V (CAT II)
- Test accessory: Yes, according to IEC EN 61010-031
- Approvals: UL, CE
