STAUBLI R4/2 adapter 24.0110

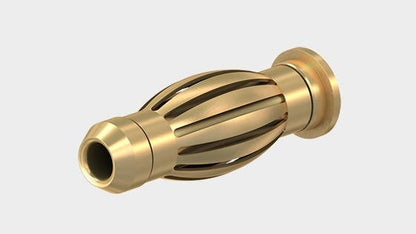

The STAUBLI R4/2 24.0110 is an uninsulated adapter used to connect measuring equipment with different plug dimensions. It features a Ø 4 mm plug at one end and a rigid Ø 2 mm socket at the other, allowing for conversion between these plug types in a test setup.
The Ø 4 mm plug part is made of brass and features a spring-loaded MULTILAM contact. This helps ensure stable electrical contact in daily use, where connections are frequently made and broken. The contact surface is gold-plated (Au), and the contact's base material is CuZn.
The adapter is rated for 30 VAC / 25 A and 60 VDC / 25 A and is specified as test accessory in accordance with IEC EN 61010-031. This makes it relevant for professional test and measurement workplaces that use standardized 4 mm and 2 mm connections.
Typical applications
- For adapting between 4 mm and 2 mm test connections
- In measurement setups and other test accessories
- When a practical transition between different plug types is required
Specifications
- Manufacturer: STAUBLI
- MPN: 24.0110
- Type: Uninsulated adapter
- Connectors: Ø 4 mm plug and Ø 2 mm rigid socket
- Ø 4 mm plug material: Brass
- Contact: Spring-loaded MULTILAM
- Rated values: 30 VAC / 25 A and 60 VDC / 25 A
- Contact surface: Au
- Contact base material: CuZn
- Standard: IEC EN 61010-031
- Datasheet: See datasheet from the manufacturer
