Stripping and Cutting Tool
Product Overview

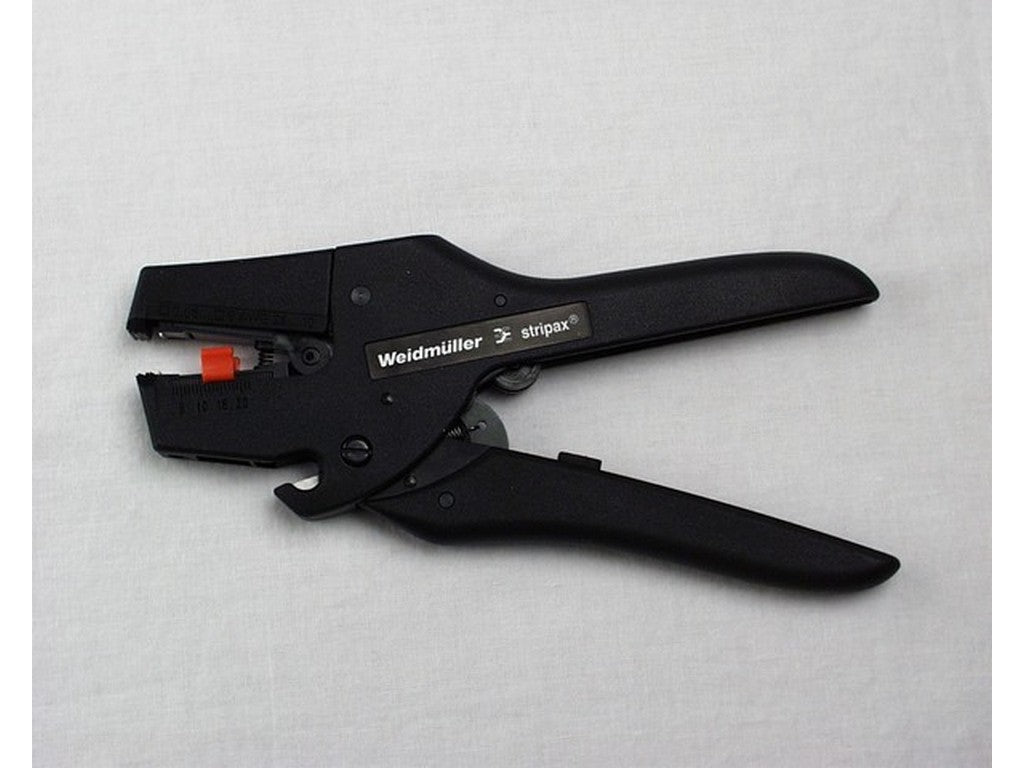

STRIPAX is a stripping and cutting tool designed for flexible and solid conductors with PVC insulation. The product supports conductor cross-sections from 0.08 mm² to 10 mm² and has a cutting capacity of 6 mm². STRIPAX has a maximum stripping length of 25 mm and automatically opens the clamping jaws after stripping. The total length of the tool is 190 mm and the net weight is 174.63 g.Functional Features
- Automatic self-adjusting stripping unit
- Adjustable stripping length via stop
- No fanning out of individual conductors during stripping
- Can process double-insulated cables in two steps without special settings
- Optimized ergonomic design and long service life (stated by the manufacturer)
Documentation
View manufacturer's datasheetTypical Applications
- Suitable for mechanical and plant engineering (stated in manufacturer documentation)
- Used in railway and train traffic (stated in manufacturer documentation)
- Used in wind energy and robotics (stated in manufacturer documentation)
- Used in explosion-proof areas as well as marine, offshore, and shipbuilding (stated in manufacturer documentation)
Specifications
- Product name: STRIPAX
- Product details (order no.): 9005000000
- Cable type: Flexible and solid conductors with PVC insulation
- Conductor cross-section, min.: 0.08 mm²
- Conductor cross-section, max.: 10 mm²
- Cutting capacity: 6 mm²
- Stripping length, max.: 25 mm
- Stripping range AWG: min. 28 AWG - max. 8 AWG
- Total length: 190 mm
- Net weight: 174.63 g
- Function: Automatic opening of clamping jaws after stripping
