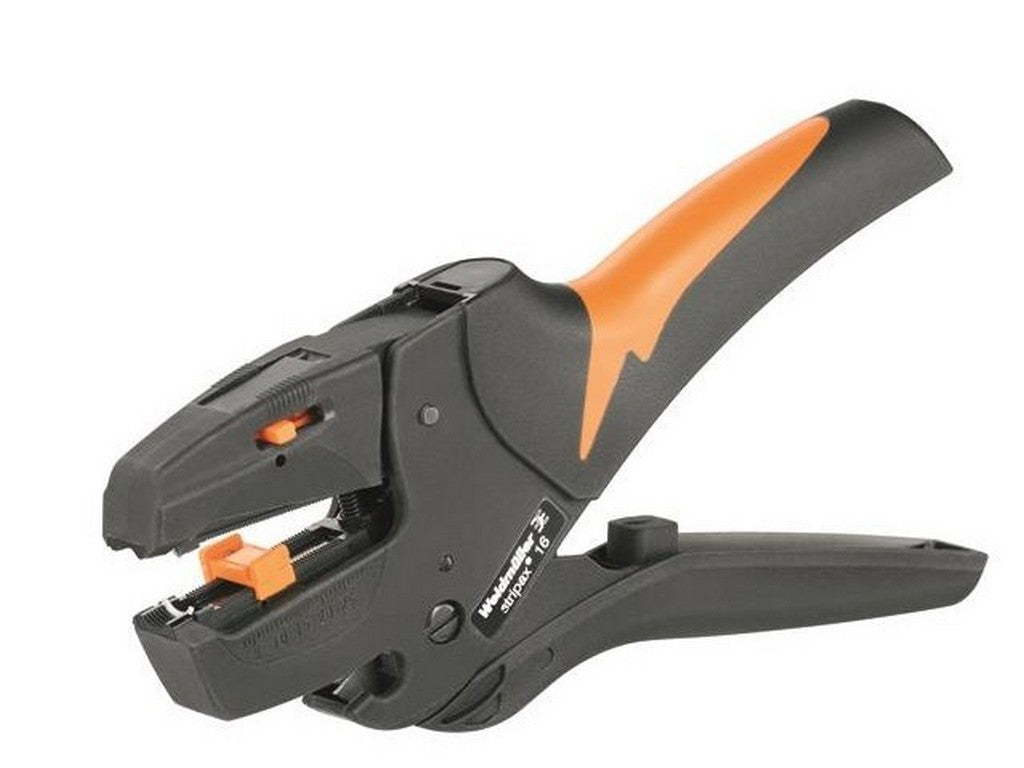

WEIDMULLER STRIPAX 16
The STRIPAX 16 is an automatic stripping and cutting tool for PVC-insulated, flexible and solid conductors. It is used when wires need to be prepared quickly and uniformly, without having to adjust the tool for each individual conductor. It self-adjusts to different insulation thicknesses, and the jaws automatically reopen after stripping, making the workflow smoother.
The tool is designed for conductors in the range of 6–16 mm², corresponding to AWG 10–6. This means it is suitable for tasks involving thicker wires than those typically found in general fine electronics. The stripping length can be set up to 25 mm, and the cutting capacity is specified as 6 mm². For double-insulated cables, the insulation can be removed in two steps without special adjustment.
In practice, it is a tool that makes it easier to achieve a clean conductor termination, without the individual strands fraying. This is relevant in professional electrical and assembly work, where both speed and uniformity are important.
Typical applications
- Machine and plant construction
- Track and railway technology
- Wind energy
- Robotics
- Ex-areas
- Marine, offshore, and shipbuilding
Specifications
- Manufacturer: WEIDMULLER
- MPN: WL17579
- Weidmüller order no.: 9005610000
- Type: automatic stripping and cutting tool
- For PVC-insulated flexible and solid conductors
- Conductor cross-section: 6–16 mm²
- AWG range: 10–6
- Max. stripping length: 25 mm
- Cutting capacity: 6 mm²
- Dimensions: 190 x 99 x 22 mm
- Net weight: 170.1 g
- Colour: orange
- Self-adjusting stripping blades
- Automatic opening of clamping jaws after stripping
