Product Overview

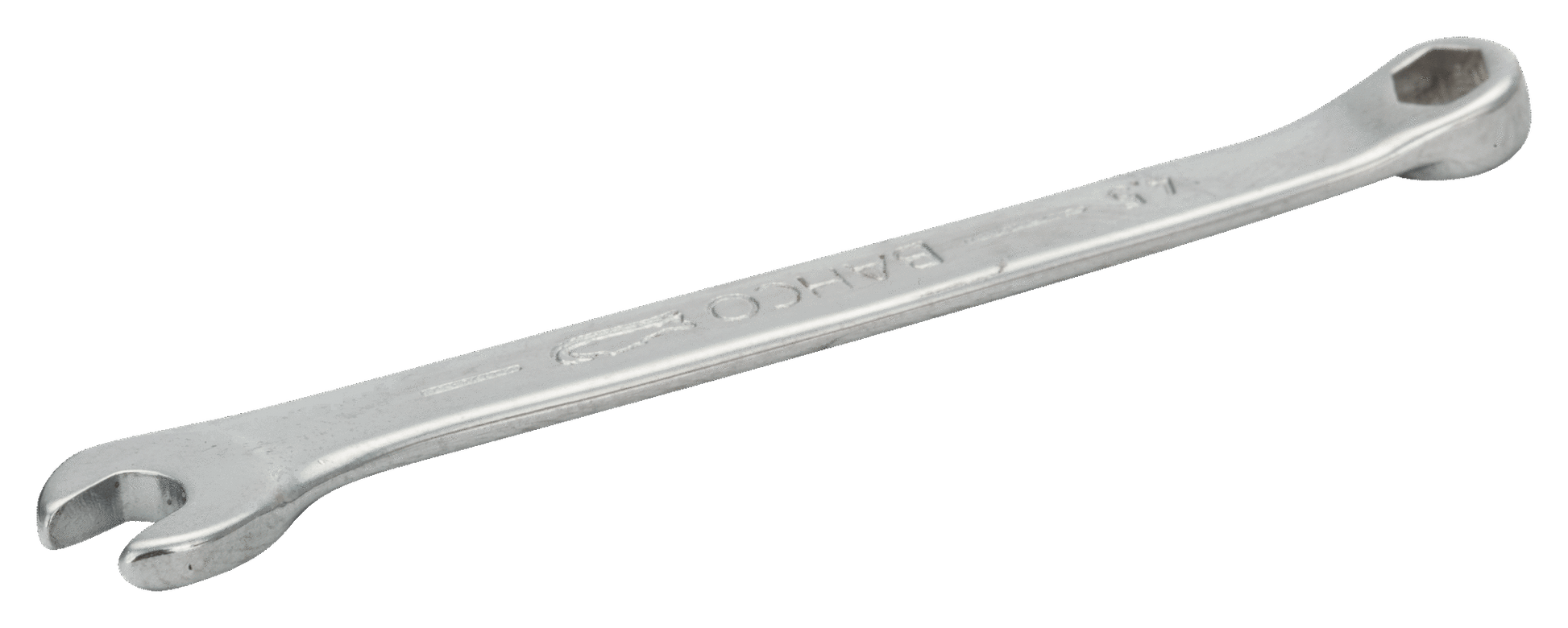

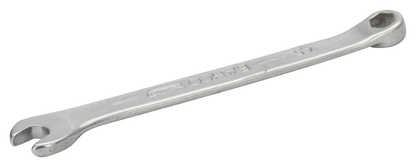

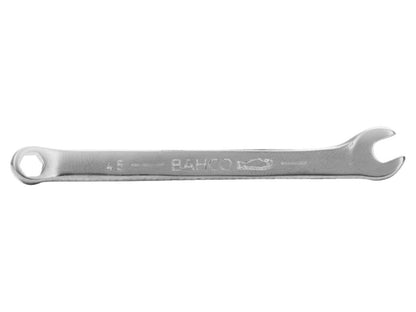

This combination wrench from BAHCO, the BAHCO 4020L-M-3.5, is a 3.5 mm Lilliput combination wrench with an overall length of 70 mm. The BAHCO 4020L-M-3.5 features an open end with a 22.5° angle and a slimmer wrench head for improved access; the ring end has an internal hex profile with a 15° offset angle. The tool is made from high-performance alloy steel and has a chrome-plated micro-matte finish.Material and Finish
- Material: High-performance alloy steel (specified by the manufacturer).
- Surface finish: Chrome-plated micro-matte finish.
Dimensions and Weight
- Overall length: 70 mm.
- Nominal size: 3.5 mm.
- Thickness, open end: 2.3 mm.
- Thickness, ring end: 2.5 mm.
- Width, open end: 9 mm.
- Width, ring end: 7.5 mm.
- Weight: 6 g.
Typical Applications
The BAHCO 4020L-M-3.5 is structurally specified as suitable for radio, telecommunications, electrical and precision mechanics, as well as carburetors (as stated by the manufacturer). The description in the manufacturer's product text specifies these concrete applications.Additional Technical Notes
- The open end's 22.5° angle and the ring end's 15° offset reduce the need for vibration and allow access in confined areas, according to the manufacturer's description.
- The ring end is designed as an internal hex profile for securing the screw head during work operations.
Specifications
- Product name: BAHCO 4020L-M-3.5 (3.5 mm Lilliput combination wrench).
- Manufacturer: BAHCO.
- Overall length: 70 mm.
- Open end angle: 22.5°.
- Ring end offset: 15°.
- Open end thickness: 2.3 mm.
- Ring end thickness: 2.5 mm.
- Open end width: 9 mm.
- Ring end width: 7.5 mm.
- Weight: 6 g.
- Material: High-performance alloy steel.
- Surface: Chrome-plated micro-matte finish.
