STAUBLI X-GL-438

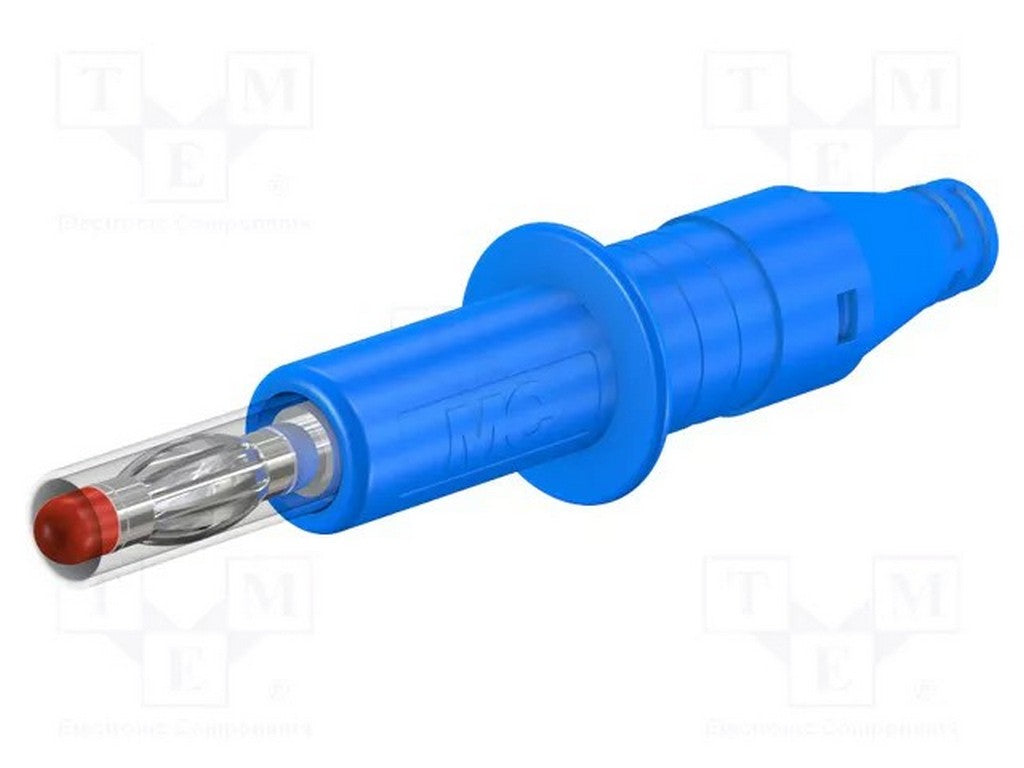

The STAUBLI X-GL-438 is a 4 mm banana plug for building test leads. It is used when assembling or replacing a lead for measurement and testing tasks that require both safety and a stable electrical connection.
The plug is designed with a spring-loaded MULTILAM contact, which ensures the contact surface inside the connection. Additionally, it features a retractable insulation collar to minimize the risk of touching live parts during use. The protective collar also provides greater air and creepage distances, which is why test leads with this plug can be used up to 600 V, CAT II.
The connection is made with a screw, so the wire can be mounted without special tools in the plug system itself. The contact base is made of CuZn with a nickel surface, and the outer diameter is 3.9 mm. It is a test accessory according to IEC EN 61010-031, and the rated values are 600 V, CAT II, and 32 A.
When working with test and measurement equipment, the combination of safe insulation and a robust plug connection is particularly important. Here, it is not just a matter of making a connection, but of doing so in a way that suits professional measurement equipment and the associated requirements.
See datasheet from the manufacturer
Typical applications
- Building test leads
- Replacing plugs on measuring leads
- Connections to test and measurement equipment
Specifications
- Manufacturer: STAUBLI
- MPN: 66.9584-23
- Product type: In-line 4 mm banana plug for self-assembly of test leads
- Contact: Spring-loaded MULTILAM
- Insulation: Retractable insulation collar
- Connection: Screw connection
- Contact base material: CuZn
- Surface treatment, electrical contact: Nickel (Ni)
- Outer diameter: 3.9 mm
- Rated values: 600 V, CAT II, 32 A
- Standard: IEC EN 61010-031
Content generated with AI - we reserve the right for errors.
Contact HIN for further product information.
