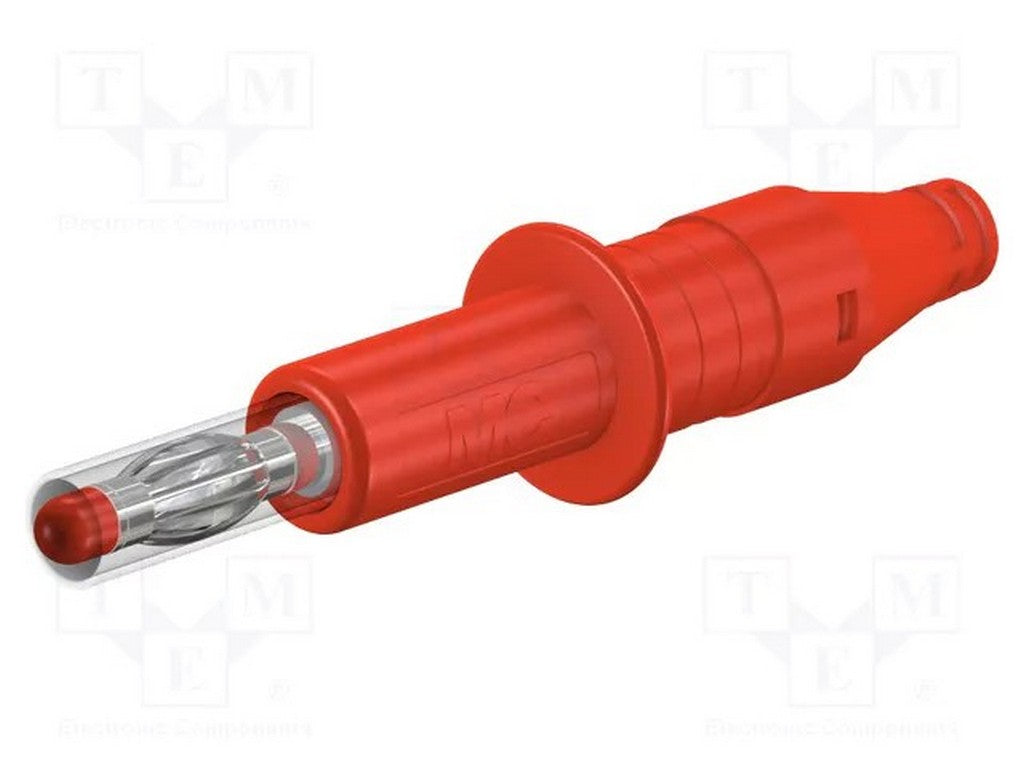

Stäubli X-GL-438 (66.9584-22)
The Stäubli X-GL-438 is a 4 mm banana plug for self-assembly of test leads. It is used when building or repairing test leads for test and measurement equipment, with a focus on safe connection during operation.
The plug features a spring-loaded MULTILAM contact, providing a stable electrical connection, and a retractable insulating sleeve, which helps protect against accidental contact. The protective collar increases the distances in the design, so test leads with this plug can also be used safely with older measuring instruments without safety sockets up to 600 V, CAT II.
Connection is made via screw terminal, and the contact material is CuZn with a nickel finish. It is a practical choice when working with test leads that need to be assembled manually and are compatible with standard 4 mm test equipment.
Typical Applications
- Self-assembly of test leads
- Connection to test and measurement instruments with 4 mm system
- Use in environments where touch protection and correct clearances are important
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 66.9584-22
- Product Name: X-GL-438
- Type: in-line 4 mm banana plug for self-assembly of test leads
- Connection: screw terminal
- Contact material: CuZn
- Surface treatment: nickel
- Rated values: 600 V, CAT II
- Current: 32 A
- Outer diameter: approx. 3.9 mm
- Max. cable cross-section: 2.5 mm²
- With spring-loaded MULTILAM contact
- With retractable insulating sleeve
- With protective collar
