Fluke SBC3B Charging Base/Power Supply with Adapters

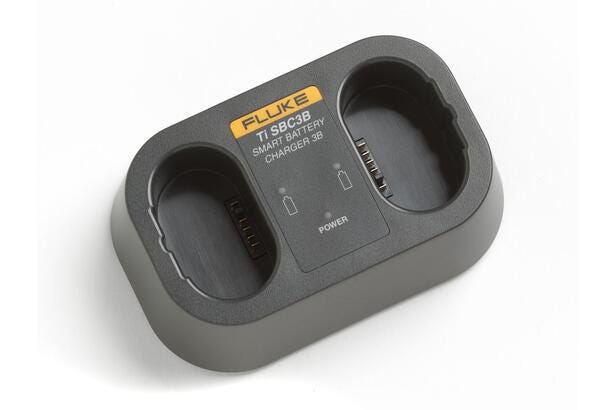

The Fluke SBC3B is a two-bay charging base with power supply for Fluke infrared cameras. It is used to charge the FLK-TI-SBP3B intelligent battery pack, which is found in Fluke thermal cameras. In practice, it is the part you insert the camera's battery into when it needs to be charged separately from the instrument itself.

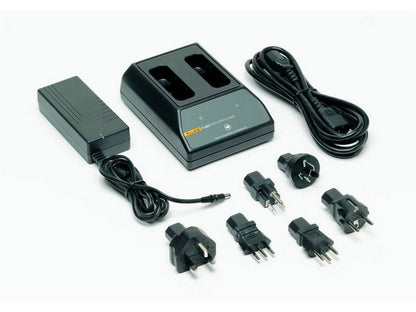

The charging base is supplied as a combination of a charging station, power supply, and wall adapters. According to Fluke, it is compatible with several camera models, including the Ti32 and TiR32. This makes it relevant in environments where the thermal imaging camera is used frequently, and where the battery therefore needs to be charged efficiently between tasks.
On the charging station, an LED indicator shows the status during charging. Off means no battery detected or no DC input. Blinking green means charging, solid green means fully charged, and blinking red indicates an error. This provides a quick overview without having to guess what's happening.
The power connection is specified as 10–15 Vdc, 2 A. The unit measures 159.5 x 68.9 x 51.3 mm and can be used in a temperature range from -10 °C to 70 °C.
A product video from Fluke and the manufacturer's datasheet/instruction sheet are also included if you want to see more about use and construction.
See datasheet from manufacturer
See product video from manufacturer
Specifications
- Manufacturer: FLUKE
- MPN: 4354922
- Product: Fluke SBC3B Charging Base/Power Supply with Adapters
- Compatible with FLK-TI-SBP3B Smart Battery Pack
- Compatible with several Fluke infrared cameras, including Ti32 and TiR32
- Battery charging: 10–15 Vdc, 2 A
- LED status: off, blinking green, solid green, blinking red
- Dimensions: 159.5 mm x 68.9 mm x 51.3 mm
- Operating temperature: -10 °C to 70 °C
- EAN/GTIN: not stated in verified data
