Product Overview

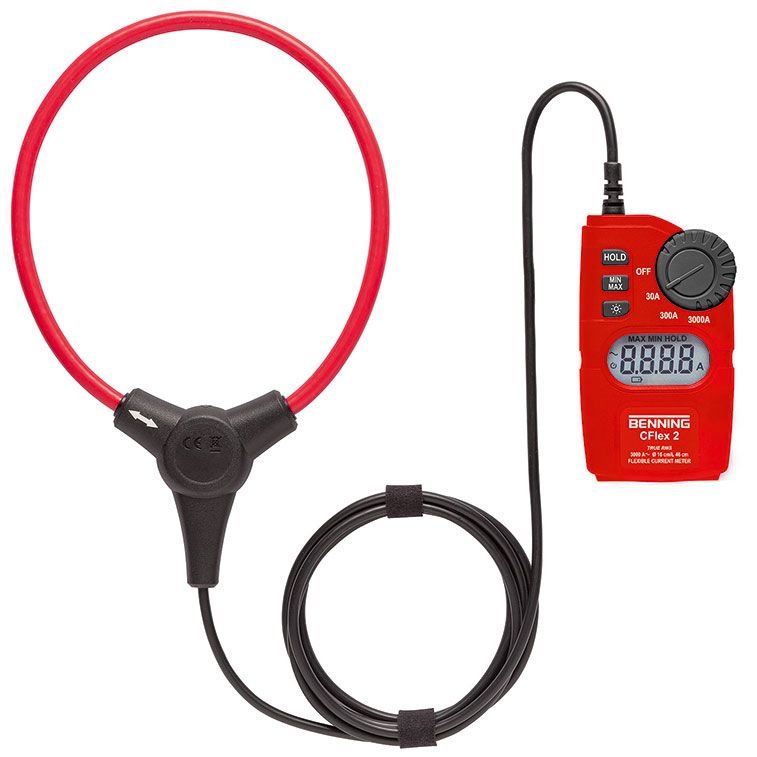

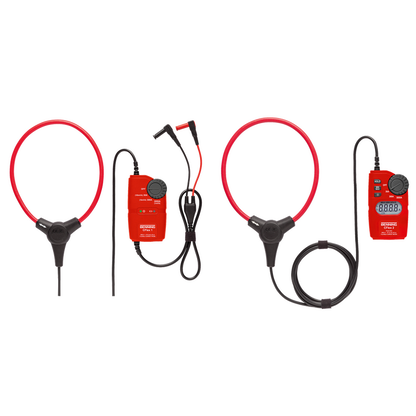

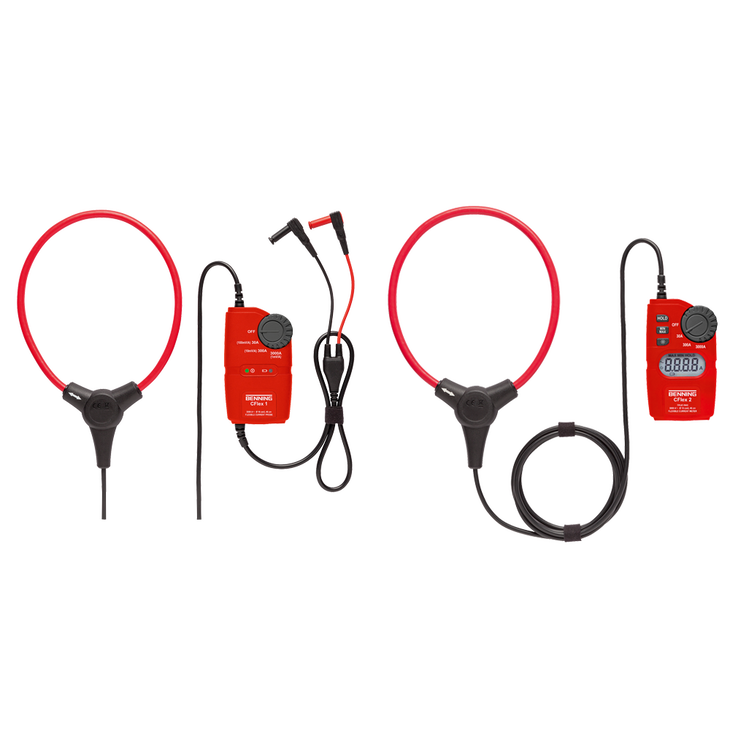

This description covers the BENNING CFlex 2 (item no. 044069), a flexible AC current transformer with a built-in 4-digit illuminated LC display. The device uses the TRUE RMS measurement method and is designed for direct measurements in low-voltage installations within the specified measurement category.
Technical Specifications
- Built-in 4-digit illuminated LC display
- True RMS measurement method
- Measurement range: 0.1 A to 3000 A
- Three measurement ranges: 30 A, 300 A, and 3000 A
- Measuring loop length: 46 cm
- Loop diameter: 16 cm
- Loop conductor diameter: 8.5 mm
- Connection cable for the measuring loop: approx. 1.8 m
- Functions: HOLD, MIN/MAX memory, battery status indicator, Auto-Power-Off (can be deactivated)
- Power supply: 3 × 1.5 V micro (AAA/LR03) batteries included
- Measurement category: CAT IV 600 V
- Comes with protective case
Typical Applications
The BENNING CFlex 2 is suitable for measurements directly at the source in low-voltage installations, as stated in the manufacturer's product text. The CAT IV 600 V function indicates that the device can be used for measurements at the power source itself in low-voltage systems, within the specified measurement ranges and limits.
Sources
Information in this product text originates from the manufacturer's product information for BENNING CFlex 2 (item no. 044069).
Specifications
- Manufacturer: BENNING
- Product name: BENNING CFlex 2
- Manufacturer's item number: 044069
- Type: Flexible AC current transformer
- Display: 4-digit illuminated LC display
- Measurement method: TRUE RMS
- Measurement range: 0.1 A – 3000 A
- Measurement ranges: 30 A / 300 A / 3000 A
- Measuring loop length: 46 cm
- Loop diameter: 16 cm
- Loop conductor diameter: 8.5 mm
- Connection cable length: approx. 1.8 m
- Functions: HOLD, MIN/MAX, battery status, Auto-Power-Off (deactivatable)
- Batteries: 3 × 1.5 V micro (AAA/LR03) included
- Measurement category: CAT IV 600 V
- Included: protective case
