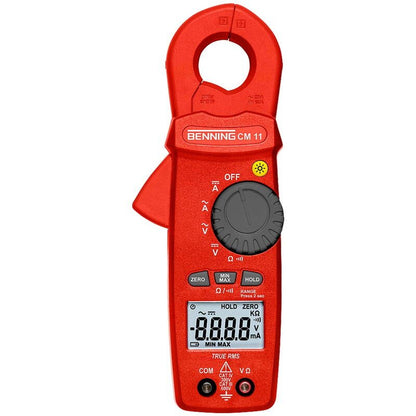

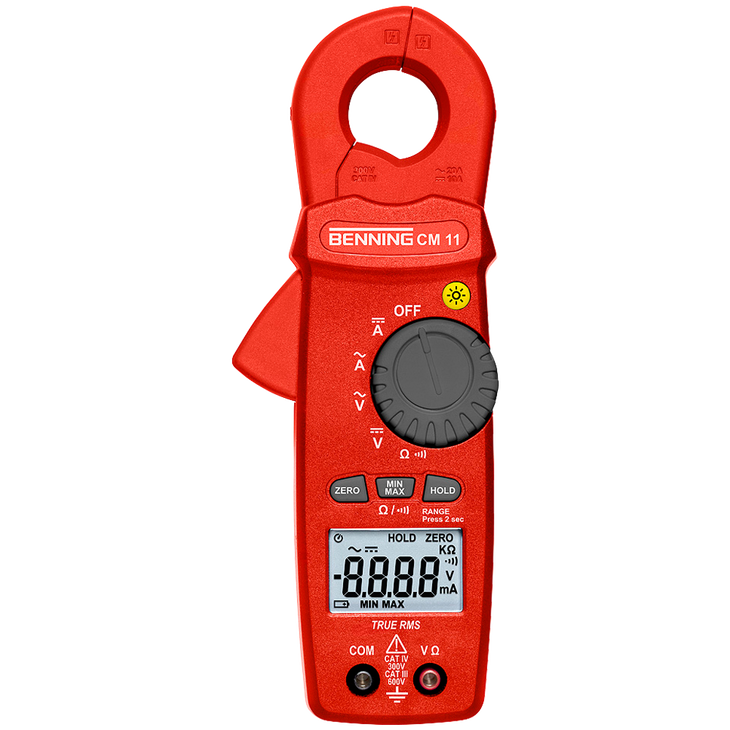

BENNING CM 11
The BENNING CM 11 is a precise clamp ammeter for measuring both AC and DC current, allowing measurements without interrupting the circuit. It is designed for milliampere and current measurements, making it suitable for checking low currents as well as standard currents in an installation or system.
What particularly characterizes the CM 11 is the combination of TRUE RMS measurement and a maximum jaw opening of 23 mm. TRUE RMS is relevant for more accurate AC current measurements, even when the signal is not perfectly clean and uniform. At the same time, the clamp function provides a practical way to measure current, as the conductor can be directly clamped with the jaw.
In addition to current, it also measures AC/DC voltage up to 600 V, resistance up to 600 kΩ, and has an audible continuity test. This makes the instrument useful as a versatile measurement tool in daily work, where both current measurement and quick troubleshooting are often needed.
The display counts up to 6,000, and built-in functions such as HOLD, MIN/MAX, and ZERO make it easier to hold a measurement, track variations, and zero for current-related measurements. With a basic accuracy of 1% and measurement category CAT IV 300 V, it is an instrument designed for professional use.
See datasheet from the manufacturer
Typical applications
- Measurement of AC and DC current in electrical installations
- Checking low currents in the mA range
- Troubleshooting with voltage, resistance, and continuity measurement
- Professional measurement in environments working up to CAT IV 300 V
Specifications
- Manufacturer: BENNING
- MPN: 044067
- Type: TRUE RMS milliampere clamp multimeter
- AC current: 0.1 mA to 20 A
- DC current: 0.1 mA to 10 A
- Max. jaw opening: 23 mm
- AC/DC voltage: up to 600 V
- Resistance: up to 600 kΩ
- Audible continuity test
- Display: 6,000 counts
- Basic accuracy: 1%
- Functions: HOLD, MIN/MAX, and ZERO
- Measurement category: CAT IV 300 V
