Stäubli PL-PC-1021SET

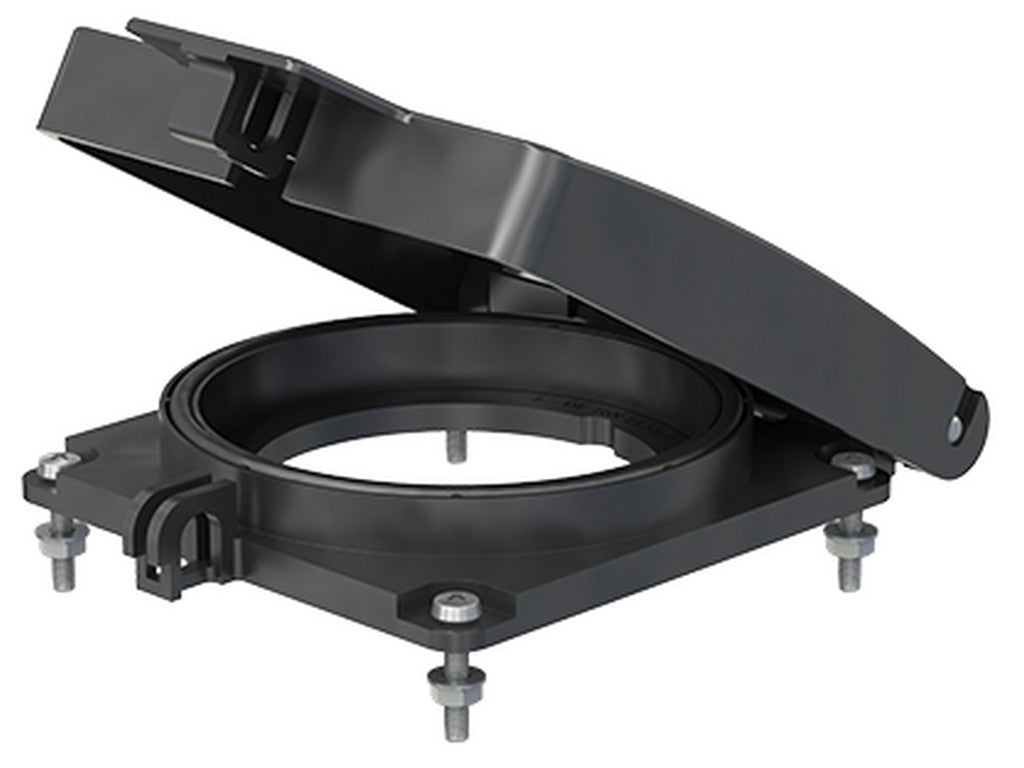

The Stäubli PL-PC-1021SET is a protective flap for Stäubli electrical connectors used on panel-mounted receptacles. It sits in front of the connection and helps protect it when not in use.
The flap is part of Stäubli's assembly instruction MA036 and belongs to the item number range 14.5252-*, which includes variant 14.5252-20. It is specified for use with selected panel receptacles such as ID/S10BV-C..., ID/S16BV-NS, ID/B16BV-NS-A, 16BL-PP/ET-C..., and ID/S21-C....
Its practical purpose is quite simple: to better protect unused connector connections in switchboards and panels. In a professional environment, this means the connection is less exposed to dirt and moisture when unused. This is especially relevant when working with panel-mounted solutions where connectors often need to be accessible but are not always connected.
Assembly depends on the specific panel receptacle. Stäubli describes four different mounting variants, including with adapter ring, self-tapping screws, or screws and nuts. In some cases, the flap can also be retrofitted. Mounting requires, among other things, M3 screws, and for some variants, a 55 mm wrench and a Phillips screwdriver size 1 are also needed.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 14.5252-20
- Product: Protective flap for Stäubli electrical connectors
- Item number range: 14.5252-* with variants 20–31
- Specified for panel receptacles: ID/S10BV-C..., ID/S16BV-NS, ID/B16BV-NS-A, 16BL-PP/ET-C..., ID/S21-C...
- Assembly instructions: MA036
- Manufacturer's name in documentation: Stäubli Electrical Connectors AG
