Corrugated Protective Hose — TM036B

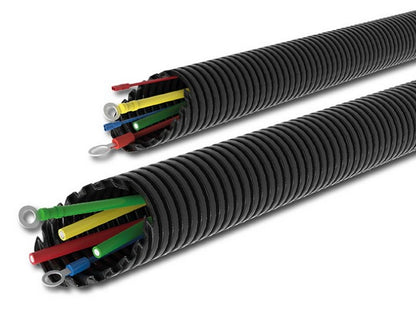

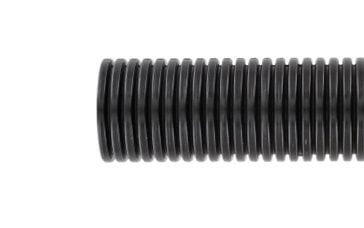

TM036B is a corrugated protective hose (Mainflex TM) made from PA6 (polyamide). The product is the fine-profile black variant with a nominal width of NW 36 and is intended as a mechanical protective hose made of nylon/polyamide material.
Description and Features
TM036B is supplied in 25 m rolls and has an internal diameter of 36 mm and an external diameter of 42.4 mm. The hose is specified with an operating temperature range from –40 °C to 150 °C and is classified as IP68. The material is RoHS compliant and free of halogens and cadmium. According to the manufacturer, the material is resistant to alcohols, greases, mineral oils, and fuels and is also described as being highly UV and weather resistant. A slotted version, designated TM-SPLIT, is also available.
For technical documentation and details, please refer to the manufacturer's datasheet:
See datasheet from the manufacturer
Application Notes
As a corrugated PA6 hose, TM036B is designed as a protective component. The stated properties—temperature range, IP68 classification, and chemical resistance—indicate how the product is specified by the manufacturer. The choice between the standard and slotted (TM-SPLIT) versions can be made based on installation needs, where roll length and dimensions must match the application.
Specifications
- Product: TM036B (Mainflex TM)
- Material: PA6 (polyamide)
- Variant: fine-profile, black
- Nominal width: NW 36
- Internal diameter: 36 mm
- External diameter: 42.4 mm
- Roll length: 25 m per roll
- Temperature range: –40 °C to 150 °C
- Protection class: IP68
- Surface material: halogen- and cadmium-free
- Compliance: RoHS compliant
- Chemical resistance: against alcohols, greases, mineral oils, and fuels
- Available variants: slotted version (TM-SPLIT)
