Product Overview

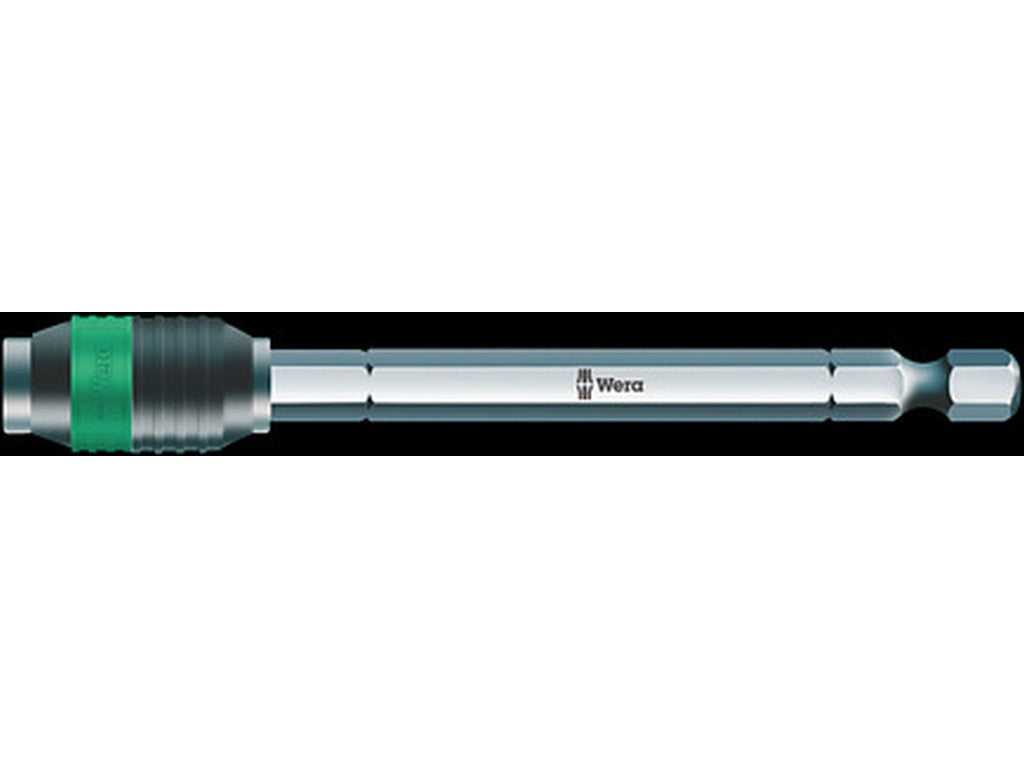

The Rapidaptor universal holder from Wera (item number 05052504001) is a bit holder for 1/4" external hex drive, designed for quick and easy one-handed bit changes. The holder is 100 mm (4") long and uses Wera's Rapidaptor quick-release mechanism with Rapid-in, self-lock, and Rapid-out functions.Function and Features
- Accepts 1/4" bits according to DIN ISO 1173-C 6.3 and E 6.3.
- Compatible with Wera bit series 1 and 4, as well as standard 1/4" DIN ISO bits.
- Rapidaptor quick-release: one-handed bit insertion and removal (Rapid-in, self-lock, Rapid-out).
- Holder length: 100 mm (4").
- Suitable for machine mounting according to DIN ISO 1173-F 6.3.
- Available in a magnetic version for improved bit retention.
Typical Applications
The product is specified for use where quick bit changes and secure bit retention are required. Its machine-friendly mounting according to DIN ISO 1173-F 6.3 makes the Rapidaptor universal holder suitable for applications where the bit holder is mounted in tools or machines with the specified standard mounting. The magnetic version enhances bit retention when driving screws.
Operation and Integration
The Rapid-in, self-lock, and Rapid-out functions enable one-handed operation of the bit holder, simplifying quick changes between bits. The Rapidaptor universal holder (05052504001) can be used with the mentioned bit types without additional tools for replacement.
Specifications
- Item number: 05052504001 (Wera).
- Drive: 1/4" external hex according to DIN ISO 1173-C 6.3 and E 6.3.
- Holder length: 100 mm (4").
- Compatibility: 1/4" DIN ISO bits and Wera series 1 and 4.
- Machine mounting: suitable for DIN ISO 1173-F 6.3.
- Quick-release mechanism: Rapidaptor (Rapid-in, self-lock, Rapid-out).
- Available in magnetic version for bit retention.
