Product Description

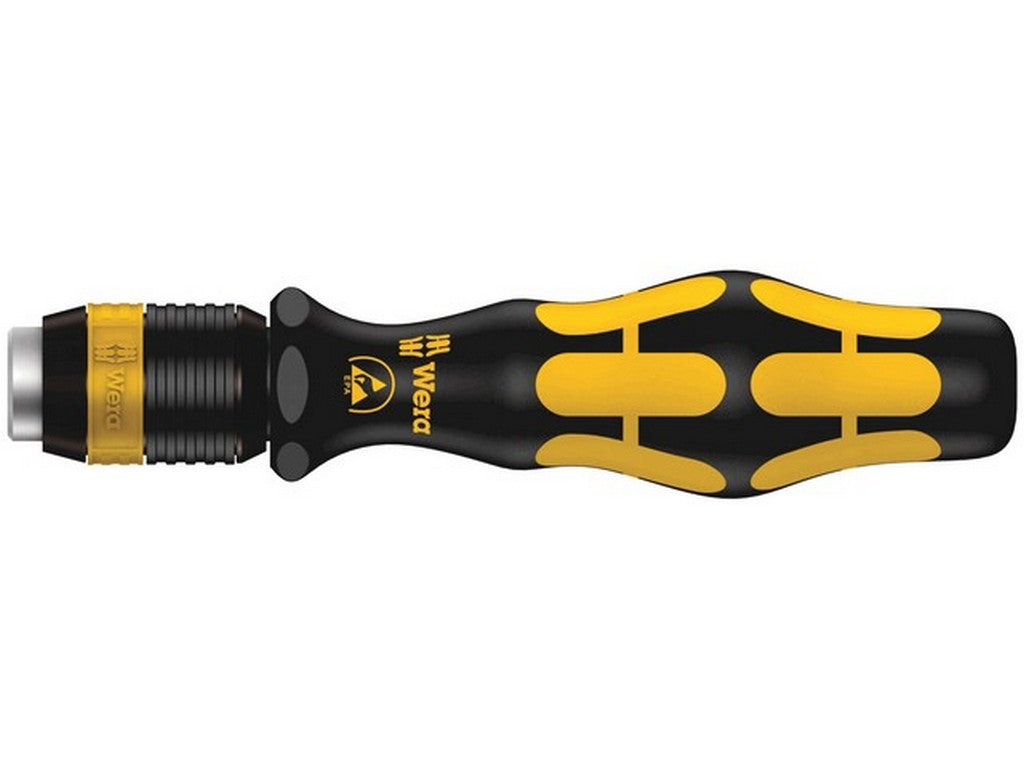

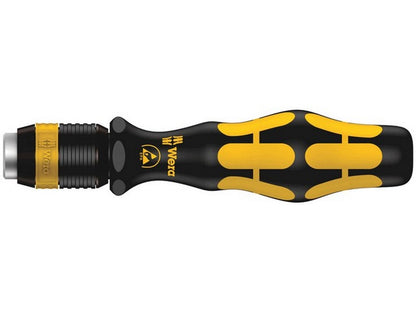

This WERA bit holder, Wera 05051273001 (813 R ESD), is a non-magnetic 1/4" bit holder designed for ESD-safe work. The Wera 05051273001 (813 R ESD) has a 1/4" hexagonal connection and a shank length (handle) of 90 mm. The handle material is WERA ESD material with an electrical surface resistance specified as ≤ 10^9 Ω, and the datasheet further indicates a range of 10^6–10^9 Ω for the ESD-specific surface resistance.Functional features
- Non-magnetic bit holder with 1/4" hexagon take-up.
- Rapidaptor quick-release chuck for one-handed bit insertion and removal.
- Kraftform Plus multi-component handle for ergonomic grip.
- Shaft with hexagonal anti-roll function to prevent rolling.
Typical applications
- Used for ESD-safe work where tools with controlled electrical surface resistance are required.
- Used for working with bits that have a 1/4" hexagon head according to DIN ISO 1173-C 6.3 and E 6.3.
Documentation
See datasheet from the manufacturer
Specifications
- Product name: Wera 05051273001 (813 R ESD)
- Type: Bit holder, non-magnetic
- Connection: 1/4" hexagon take-up
- Shaft/handle length: 90 mm
- Surface resistance (ESD material): ≤ 10^9 Ω (datasheet indicates range 10^6–10^9 Ω)
- Weight: 39 g
- Size: 90 x 22 x 22 mm
- EAN: 4013288103901
- Country of origin: CZ
- Rapidaptor quick-release chuck: Yes (one-handed insertion and quick removal)
- Kraftform Plus multi-component handle: Yes
- Hexagonal anti-roll function: Yes
- Compatibility: Bits according to DIN ISO 1173-C 6.3 and E 6.3
- Customs tariff number: 82054000
The content is generated using AI – we reserve the right for errors.
Contact HIN for further product information.
