Blind Plug from SIB

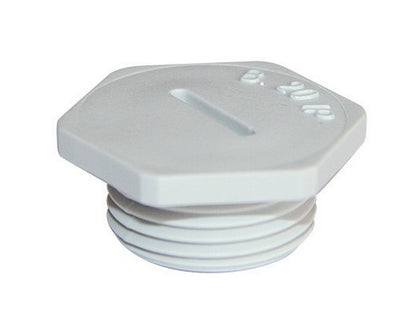

This blind plug, SIB G4825210, is a hexagonal (6-sided) blind plug made of polyamide 6 with 25% glass fiber reinforcement. The product is designed for M25 metric thread and is specified with IP68 protection (without thread sealing) according to EN 60423. The specified operating temperature range is -30°C to +120°C.
Material and mechanical properties
- Material: Polyamide 6 (PA6) with 25% glass fiber reinforcement.
- Geometry: Hexagonal (6-sided) shape for M25 thread.
- IP protection: IP68 (specified without thread sealing) in accordance with EN 60423.
- Temperature range: -30°C to +120°C.
Documentation
Product information and technical documentation are registered by the manufacturer under reference G4800200. For further technical data and a complete product catalog, the manufacturer's datasheet can be used:
See datasheet from the manufacturer
Typical applications
SIB G4825210 is used to close or seal an unused M25 metric threaded opening during assembly, where a polyamide blind plug is required, and where IP68 requirements (without thread sealing) as well as the specified temperature range apply.

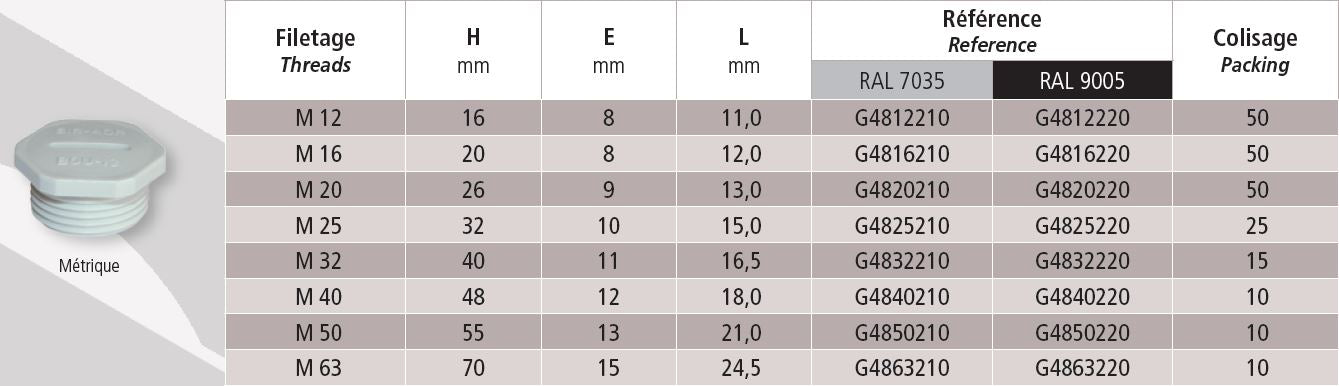

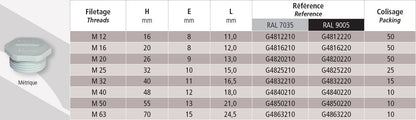

Specifications
- Manufacturer: SIB
- Product number: G4825210
- Type: Hexagonal (6-sided) blind plug
- Material: Polyamide 6 with 25% glass fiber
- Thread: M25 metric thread
- IP class: IP68 (without thread sealing) to EN 60423
- Operating temperature: -30°C to +120°C
- Manufacturer's technical reference: G4800200
Sources
- SIB technical catalog: See datasheet from the manufacturer
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
