STAUBLI 15.0688C2-21

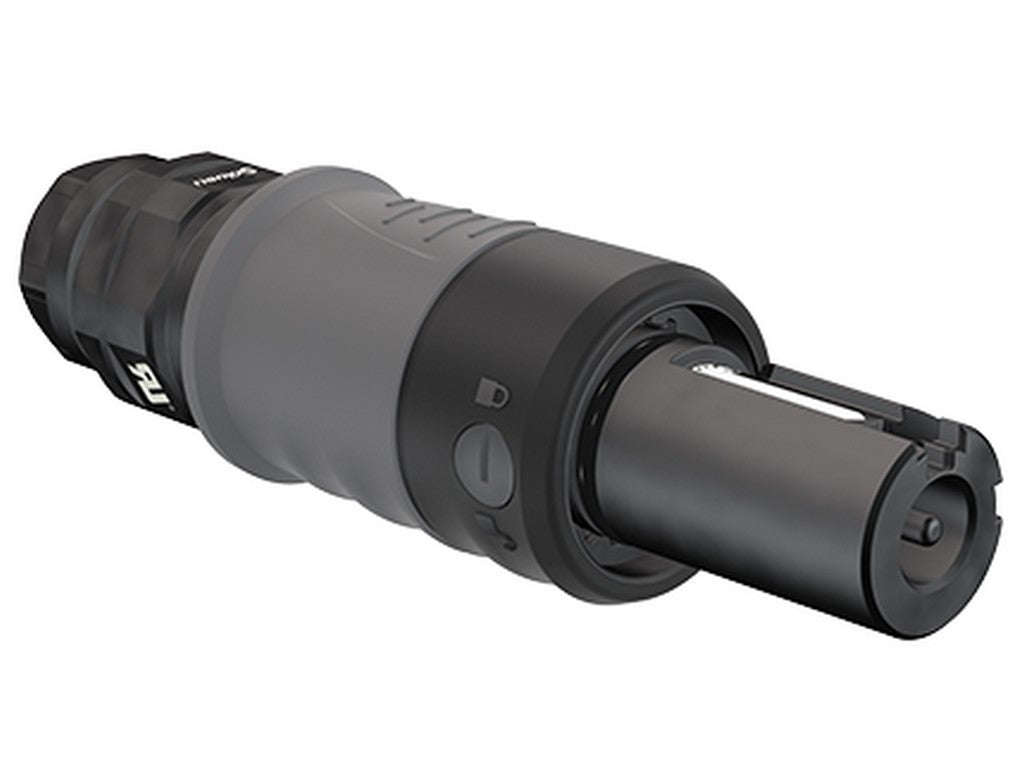

The STAUBLI 15.0688C2-21 is an insulated, single-pole socket for crimp connection in the 16BL series. It belongs to Stäubli's round single-pole connectors with a diameter of 10–21 mm and is used when a robust power connection is required in installations with high demands on safety and durability.
The key feature here is that the wire is terminated with a crimp, ensuring a mechanically secure connection suitable for professional assembly. For this type, the conductor cross-section is specified as 120 mm², and the catalog also lists values of 17 and 22 for AxiClamp sleeve SW and crimp-sleeve outer diameter, respectively. The series is rated for a nominal voltage of AC 1000 V / DC 1500 V, and the entire 16BL series is rated for up to 630 A.
In practice, this type of connection is typically used where power needs to be connected and disconnected in a controlled manner without compromising electrical safety. This partly explains why Stäubli uses bayonet locking and other features that come with the 16BL series. Installation guide MA408 and the product catalog are available from the manufacturer.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0688C2-21
- Type: insulated single-pole socket with crimp connection
- Series: 16BL
- For round single-pole connectors, Ø 10–21 mm
- Conductor cross-section: 120 mm²
- AxiClamp sleeve SW: 17
- Crimp-sleeve outer Ø: 22
- Nominal voltage for 16BL series: AC 1000 V / DC 1500 V
- Nominal current rating for 16BL series: up to 630 A
- Manufacturer's installation guide MA408 is available
- Manufacturer's product catalog is available
