Product Overview

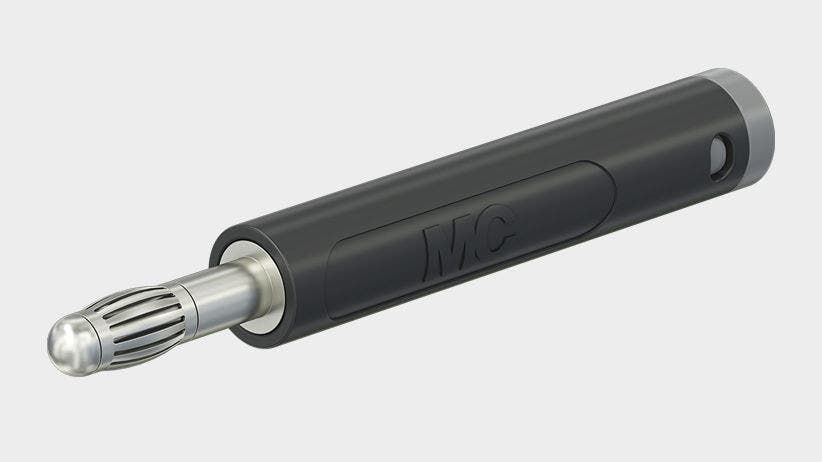

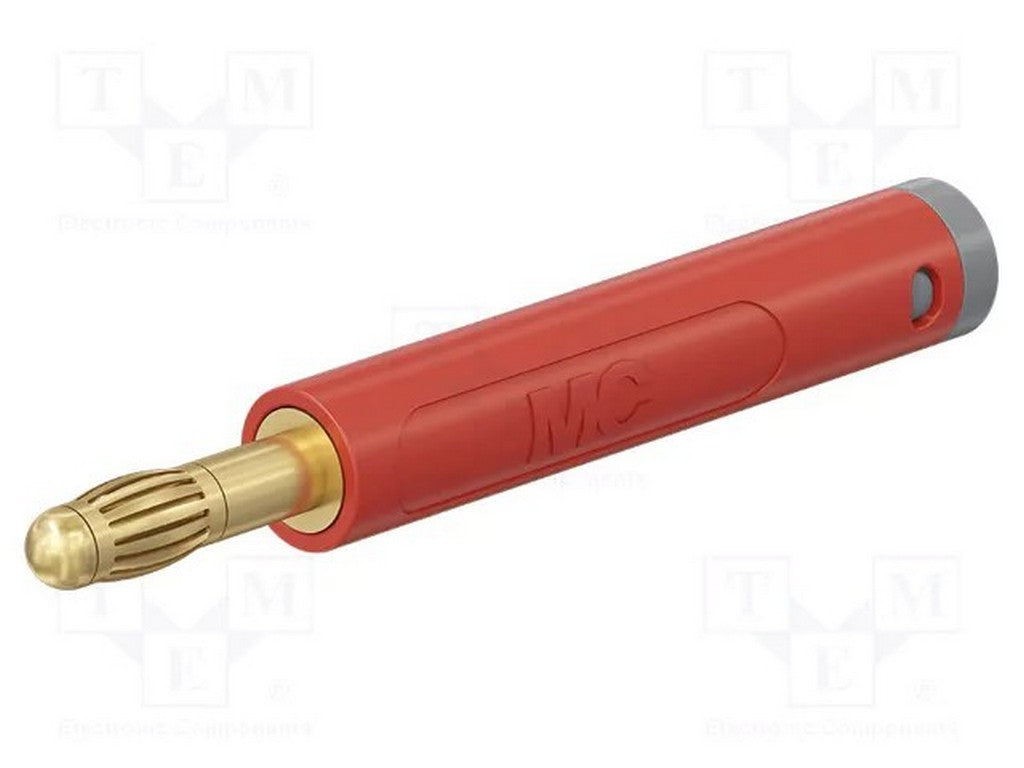

This axial 4 mm plug type AL-4A-39 from STAUBLI is an axial 4 mm plug designed for self-assembly of test leads. The AL-4A-39 features a spring-loaded MULTILAM contact and uses a solder connection (Lötanschluss). The product documentation indicates compliance with IEC EN 61010-031 as a test equipment accessory.Technical Description
- Type: AL-4A-39 (Staubli item number 64.2051-*)
- Axial, contact point diameter: 4 mm
- Contact construction: spring-loaded MULTILAM for self-assembly of test leads
- Connection: Solder connection
Typical Applications
The AL-4A-39 is used for self-assembly of test leads where an axial 4 mm plug connection with spring-loaded MULTILAM is specified. This is directly stated in the manufacturer's product text for the AL-4A-39.
Documentation
Detailed technical documentation and specifications can be found in the manufacturer's datasheet: View datasheet from manufacturer
Specifications
- Item number: 64.2051-*
- Model: AL-4A-39
- Plug system diameter: 4 mm
- Rated operating values: 30 V AC / 32 A and 60 V DC / 32 A
- Contact part surface: Au (gold-plated)
- Contact part base material: CuZn
- Outer diameter: 8.0 mm
- Connection type: Lötanschluss (solder connection)
- Test equipment accessory in accordance with: IEC EN 61010-031
Content generated using AI – subject to errors.
Contact HIN for further information about the product.
