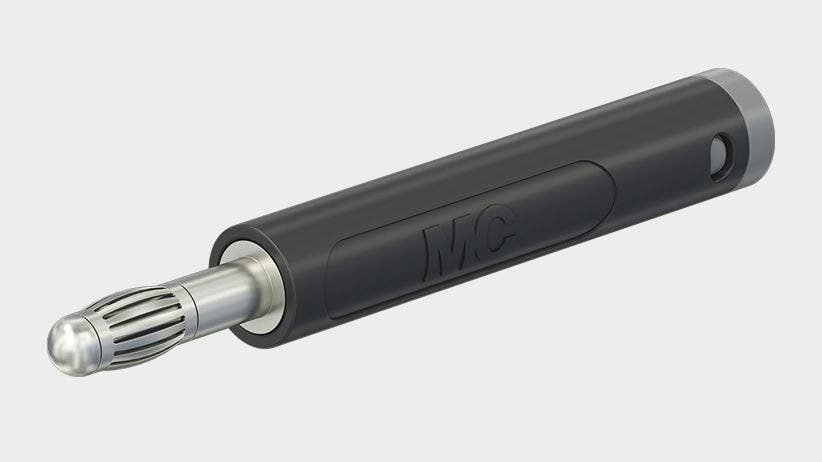

In-line Ø 4 mm test plug
The Stäubli AL-4A-39 is an in-line Ø 4 mm test plug designed for self-assembly of test leads. The product features a spring-loaded MULTILAM contact and uses a solder connection for cable termination. The description below is based on the manufacturer's official data.
Function and construction
- Spring-loaded MULTILAM for self-assembly of test leads.
- Solder connection as the electrical connection method.
- Electrical contact material: CuZn with Au (gold) surface treatment.
Typical applications
The Stäubli AL-4A-39 is used for self-assembly of test leads where an in-line 4 mm contact is required. This application is stated directly in the manufacturer's product description as "self-assembly of test leads".
Documentation
Further technical details can be found in the manufacturer's datasheet: See datasheet from the manufacturer
Specifications
- Manufacturer: Stäubli
- Item/article number: 64.2051-*
- Product name: Stäubli AL-4A-39
- Diameter of plug system: 4 mm
- Outer diameter: 8.0 mm
- Rated values: AC 30 V / 32 A and DC 60 V / 32 A
- Surface treatment electrical contact: Au (gold)
- Base material electrical contact: CuZn
- Connection type: Solder connection
- Max. cable diameter: 3.9 mm
- Max. cable cross-section: 2.5 mm²
- Test accessory according to: IEC EN 61010-031
