STAUBLI 01.0009

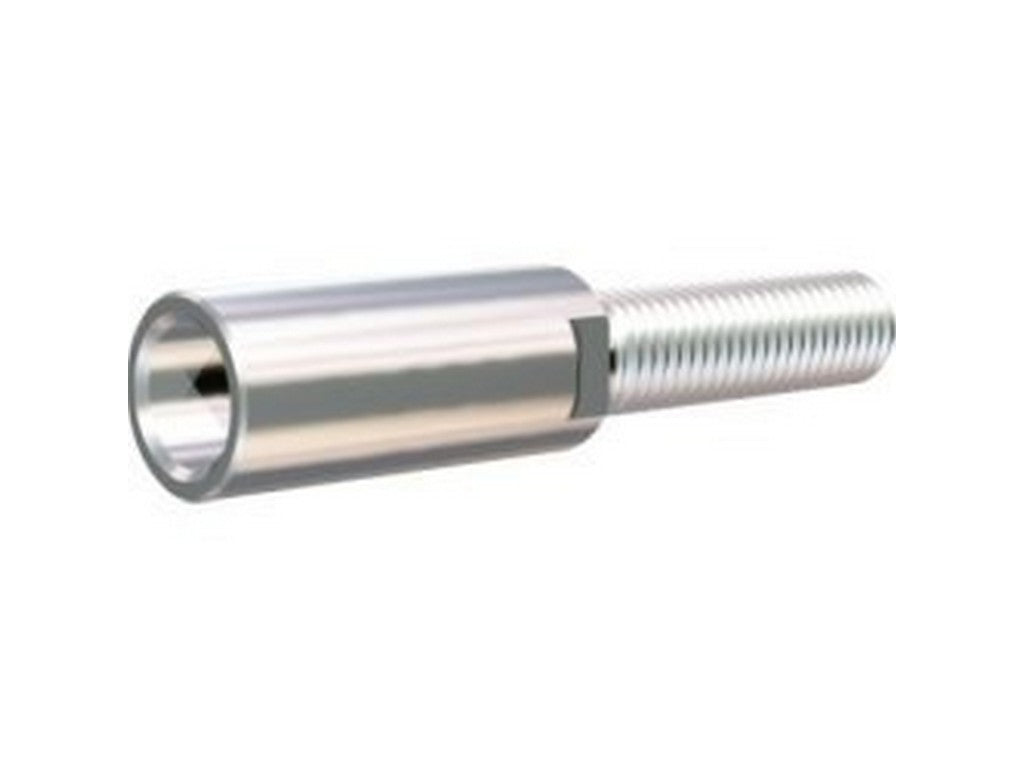

The STAUBLI 01.0009 is a single-pole, uninsulated circular connector of type B14N. It is used to establish a robust power connection in industrial systems where single-pole connections are preferred over multi-pole plugs.
It is part of the Stäubli Powerline series, which is built around MULTILAM contact technology. In practice, this means a contact surface developed to maintain low contact resistance and provide a stable connection over time. This is relevant for customers when the connection needs to handle high loads and many mating cycles.
The 01.0009 has an M14 threaded connection and is specified with an insertion and withdrawal force of 50 and 45, respectively, and a tightening torque of 22. It is rated for a nominal current of 300 A at 80 °C and 500 A at 150 °C. The contact resistance is stated as 35 µΩ, and short-circuit data is listed as 11.5 kA for 1 second and 8 kA for 3 seconds.
These specifications make it suitable for connections where it is not just about transmitting power, but also about operational reliability and a mechanical connection that is practical to work with. The item is typically used as part of a larger power distribution system where requirements for both contact quality and space are critical.
Typical applications
- industrial power connections
- power transmission and distribution
- switchgear and busbar connections
- test benches
- cable couplings in industrial use
Specifications
- Manufacturer: STAUBLI
- MPN: 01.0009
- Type: B14N
- Single-pole, uninsulated circular connector
- Contact type: MULTILAM LAI
- Thread: M14
- Rated current at 80 °C: 300 A
- Rated current at 150 °C: 500 A
- Contact resistance: 35 µΩ
- Short-circuit current 1 s: 11.5 kA
- Short-circuit current 3 s: 8 kA
- Insertion/withdrawal force: 50 / 45
- Tightening torque: 22
- Datasheet: See datasheet from the manufacturer
The content has been generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
