STAUBLI 01.0010

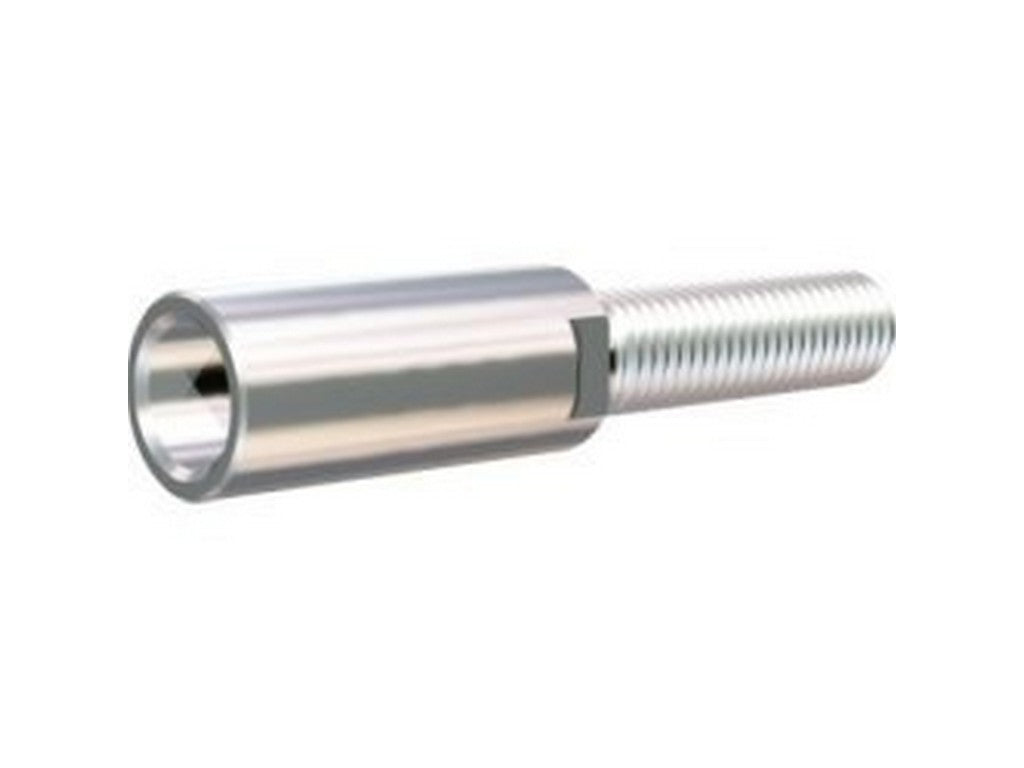

The STAUBLI 01.0010 is a single-pole, uninsulated round bushing of Type B16N. It is used in power connections where a robust and separable electrical connection is desired in an industrial context. This is the fixed part of the connection, which belongs with the matching plug parts in the series.
The connection is based on MULTILAM contact technology, which is Stäubli's contact principle with spring-loaded contact lamellae. In practice, this means that the contact remains stable, so the resistance remains low, even when the connection is used many times. This is an important detail in systems where current must be transmitted safely and with limited heating.
The 01.0010 is an uninsulated bushing, so it is typically used in solutions where the construction around the connection provides the necessary shielding or mechanical protection. With an M16 thread and the specified dimensions, it fits into a range of mounting tasks where space and fastening must be unambiguously defined.
In the official catalog data, it is rated for 350 A at 80 °C and 540 A at 150 °C. The contact resistance is 25 µΩ, and the rated short-time peak current is 40 kA. These figures indicate that it is designed for demanding current-carrying connections where both heat generation and load must be managed.
See datasheet from the manufacturer
Typical applications
- power transmission and distribution
- switchgear
- busbar connections
- industrial test benches
- cable coupling in industrial plants
Specifications
- Manufacturer: STAUBLI
- MPN: 01.0010
- Type: B16N
- Uninsulated, single-pole round bushing
- Contact technology: MULTILAM (LAI)
- Thread: M16
- Dimensions: A=22 mm, B=16 mm, C=38 mm, D=106 mm
- Rated current: 350 A at 80 °C
- Rated current: 540 A at 150 °C
- Contact resistance: 25 µΩ
- Rated peak withstand current: 40 kA
- Withdrawal force: 65 N
- Insertion force: 70 N
- Tightening torque: 30 Nm
- Weight: 0.160 kg
