STAUBLI 01.0012

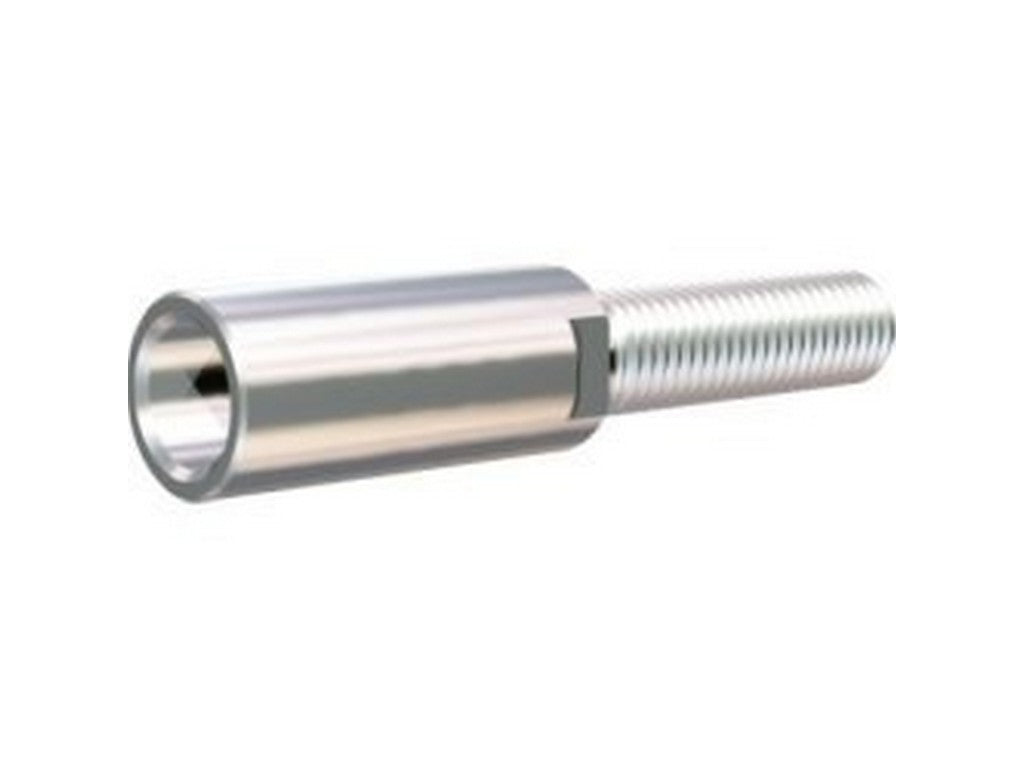

The STAUBLI 01.0012 is a single-pole, uninsulated circular connector of type B20N. It is used to create a strong electrical connection between components where high current flow and a robust mechanical joint are required. In practice, it is a component found in industrial systems where connections must be stable and able to withstand demanding operation.
It is particularly worth noting the high current capacity and low contact resistance. In short, this means that the connection is designed to conduct current efficiently while minimizing loss and heating. At the same time, it is designed for screw mounting with an M18 thread, and the dimensions specified by the manufacturer indicate that it is a relatively large connector for high-load applications.
It belongs to Stäubli's range of single-pole, uninsulated circular connectors, which are used where a simple and secure plug-in connection is desired in electrical and industrial installations.
Typical applications
- Power connections in industry and energy systems
- Components in switching and distribution equipment
- Connections with high current requirements
Specifications
- Manufacturer: STAUBLI
- MPN: 01.0012
- Type: B20N
- Uninsulated, single-pole circular connector
- Thread: M18
- Dimensions: 28, 20, 42 and 122 mm
- Mounting torque: 40 Nm
- Insertion force: 120 N
- Withdrawal force: 80 N
- Weight: 0.265 kg
- Rated current at 80 °C: 500 A
- Rated current at 150 °C: 760 A
- Contact resistance: 15 μΩ
- Short-circuit current for 1 s: 17 kA
- Short-circuit current for 3 s: 12.5 kA
- Datasheet: See datasheet from the manufacturer
