STAUBLI 23.3030-25

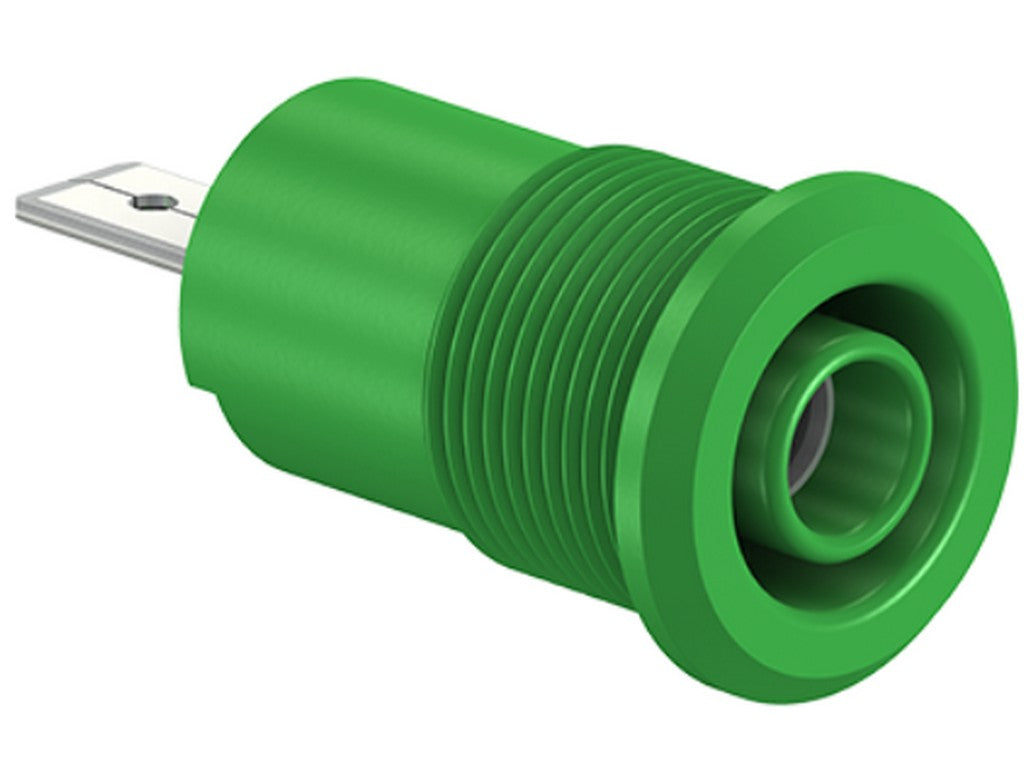

The STAUBLI 23.3030-25 is a screw-in entry for a 4 mm safety socket from Stäubli. It is used as part of panel-mounted SLB4-F/A sockets, meaning when a fixed connection needs to be built into a front panel or an enclosure.
It is an insulated brass part that accepts spring-loaded 4 mm test plugs with a rigid insulating sleeve. This makes it suitable for applications where measurement equipment is used and a secure and stable connection is desired. For the electrical connection, there is a flat tab connector measuring 4.8 × 0.8 mm, which can be bent once to 90° during installation if required by the design.
As a spare part or component, it makes sense when building or maintaining a test point in a panel without compromising mechanical and electrical fit. Stäubli provides mounting details, drilling, and cutouts in the installation guide MA152. For the SLB4-F/A family, the documented ratings are 1000 V, CAT III / 24 A and 600 V, CAT IV / 24 A.
See datasheet from the manufacturer
Typical Applications
- Panel-mounted measurement and test setups
- Construction of fixed safety sockets in test and measurement equipment
- Spare part in SLB4-F/A panel sockets
Specifications
- Manufacturer: STAUBLI
- MPN: 23.3030-25
- Type: screw-in entry / safety socket, 4 mm
- Application: component for SLB4-F/A panel-mounted socket
- Material: machined brass
- Insulated
- Accepts spring-loaded Ø 4 mm plugs with rigid insulating sleeve
- Electrical connection: flat connector tab 4.8 mm × 0.8 mm (faston)
- Connector tab can be bent once to 90°
- Documented family ratings: 1000 V, CAT III / 24 A and 600 V, CAT IV / 24 A
