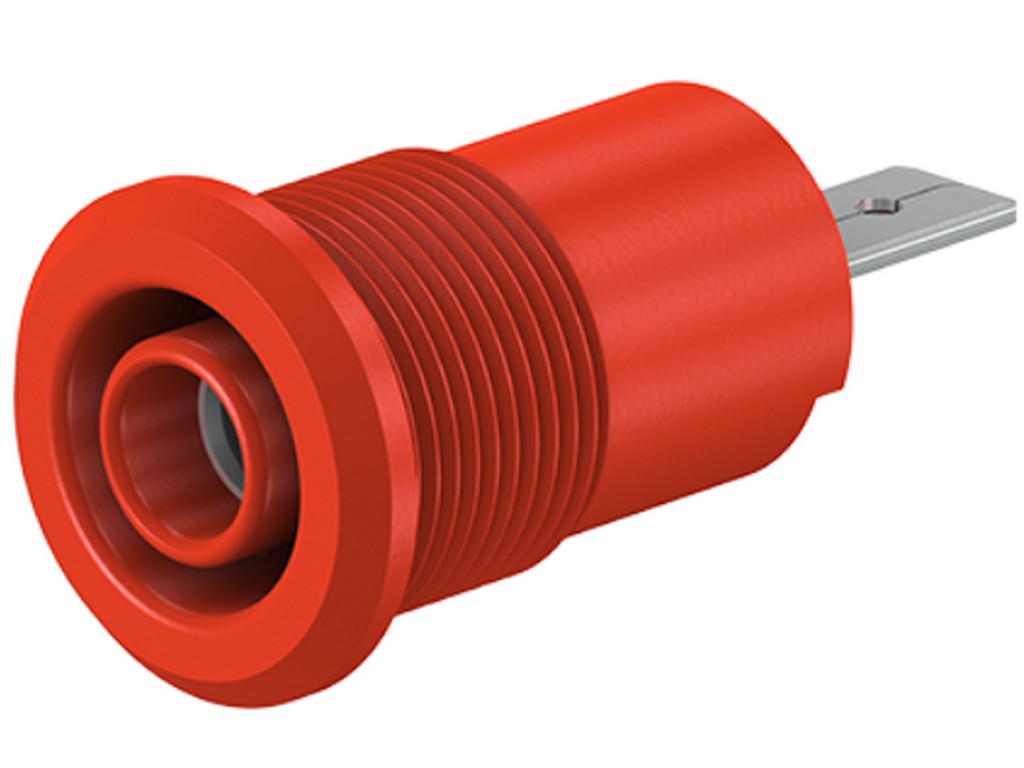

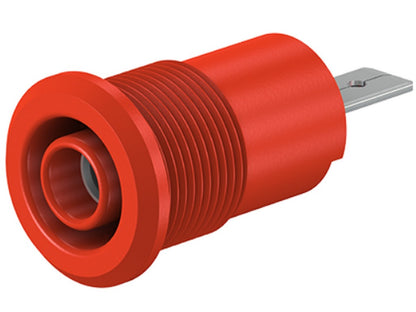

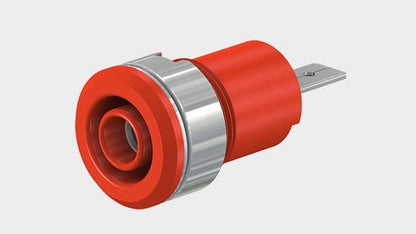

STAUBLI BI-SLB4-F/A safety socket 4 mm
STAUBLI BI-SLB4-F/A is a screw-mounted, insulated 4 mm safety socket for building test and connection points in panels and instruments. It is used when a permanently mounted 4 mm connection is desired, which accepts spring-loaded Ø 4 mm plugs with insulating sleeves.
The socket itself has a machined brass body, and the connection is made via a flat connection pin measuring 4.8 x 0.8 mm. In practice, this means it is designed to be a robust contact in professional measuring and testing equipment where safe and clear front panel mounting is required.
At STAUBLI, it falls under order number series 23.3030-*. It is mounted in the front panel and secured from behind, ensuring a stable fit in the assembly. The mounting instructions also state that connection and mounting must be performed professionally, and that only the specified parts and tools may be used.
During installation, it is important to adhere to the specified mounting conditions and safety distances. STaubli states, among other things, that for 1000 V CAT III, a minimum of 14.3 mm air clearance is required for reinforced insulation, and that the component must not be accessible on the connection side during operation.
Typical applications
The safety socket is typically used in test equipment, measuring panels, and other electrical assemblies where a fixed 4 mm safety connection is required on the front.
Specifications
- Manufacturer: STAUBLI
- MPN: 23.3030-22
- Type: screw-mounted, insulated 4 mm safety socket
- Accepts: spring-loaded Ø 4 mm plugs with insulating sleeves
- Material: machined brass body
- Connection: flat connection pin 4.8 x 0.8 mm
- Order number series: 23.3030-*
- Datasheet from manufacturer: See datasheet from manufacturer
