STAUBLI 01.0303

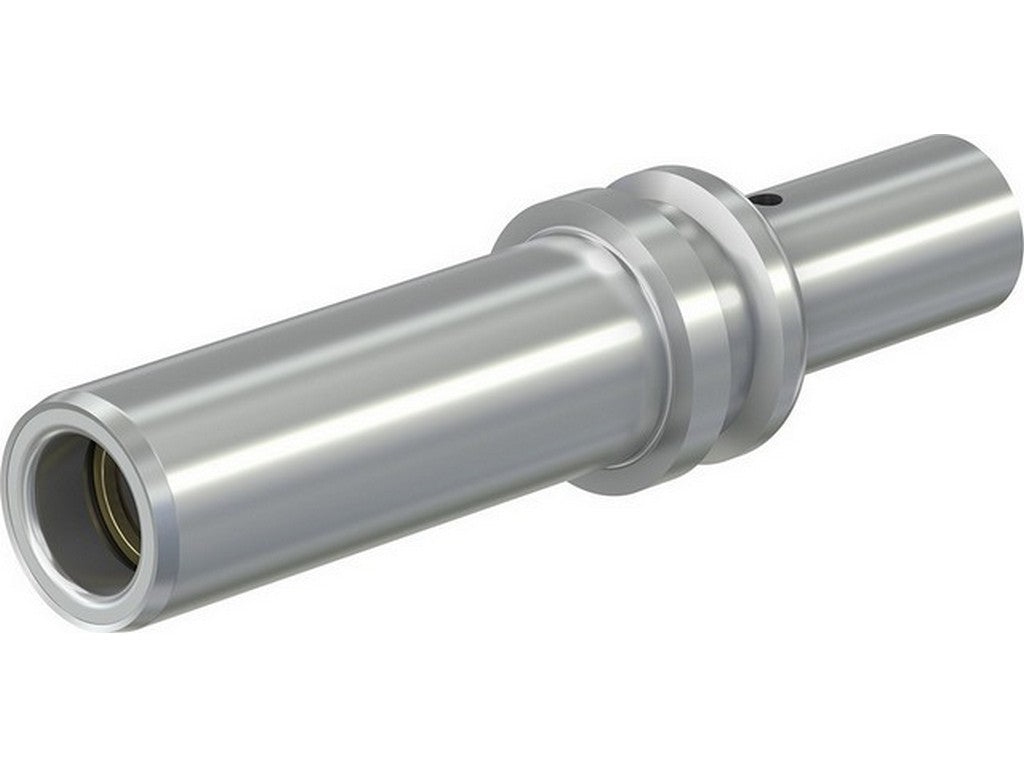

The STAUBLI 01.0303 is a 1-pole, uninsulated circular connector with MULTILAM contact technology. It belongs to Stäubli's range of industrial high-current connections and is used where power needs to be connected safely and quickly in a professional installation.
The connector is specified as type BP10AR-N/25 and is designed for conductor cross-sections of 25 mm² copper. This makes it relevant for tasks where a compact connection is required, but still with high current capacity and low contact resistance. The low contact resistance of 50 µΩ helps to keep losses and heating down during operation.
As part of Stäubli's circular connectors, it is designed for industrial environments where connections need to be disconnected and reconnected without losing electrical quality. It is therefore ideal for systems and equipment used in power distribution, test setups, or other fixed installations with requirements for reliable contact.
At 80 °C, the rated current is 130 A. In addition, it is specified for a short-circuit current of 3 kA for 1 second and 1.5 kA for 3 seconds, as well as a rated peak current of 20 kA. The dimensions are ØA 16 mm, ØB 10 mm, C 43 mm, and D 76 mm, and the weight is 0.083 kg.
See datasheet from the manufacturer
Typical Applications
- Power connections in industrial equipment
- Power distribution
- Test and measurement setups
- Installation tasks where a 1-pole disconnectable connection is desired
Specifications
- Manufacturer: STAUBLI
- MPN: 01.0303
- Type: BP10AR-N/25
- Designation: LAI
- 1-pole, uninsulated circular connector
- Conductor cross-section (Cu): 25 mm²
- Rated current (80 °C): 130 A
- Contact resistance: 50 µΩ
- Short-circuit current (1 s): 3 kA
- Short-circuit current (3 s): 1.5 kA
- Rated peak current: 20 kA
- Dimensions: ØA 16 mm, ØB 10 mm, C 43 mm, D 76 mm
- Weight: 0.083 kg
