STAUBLI 01.0310

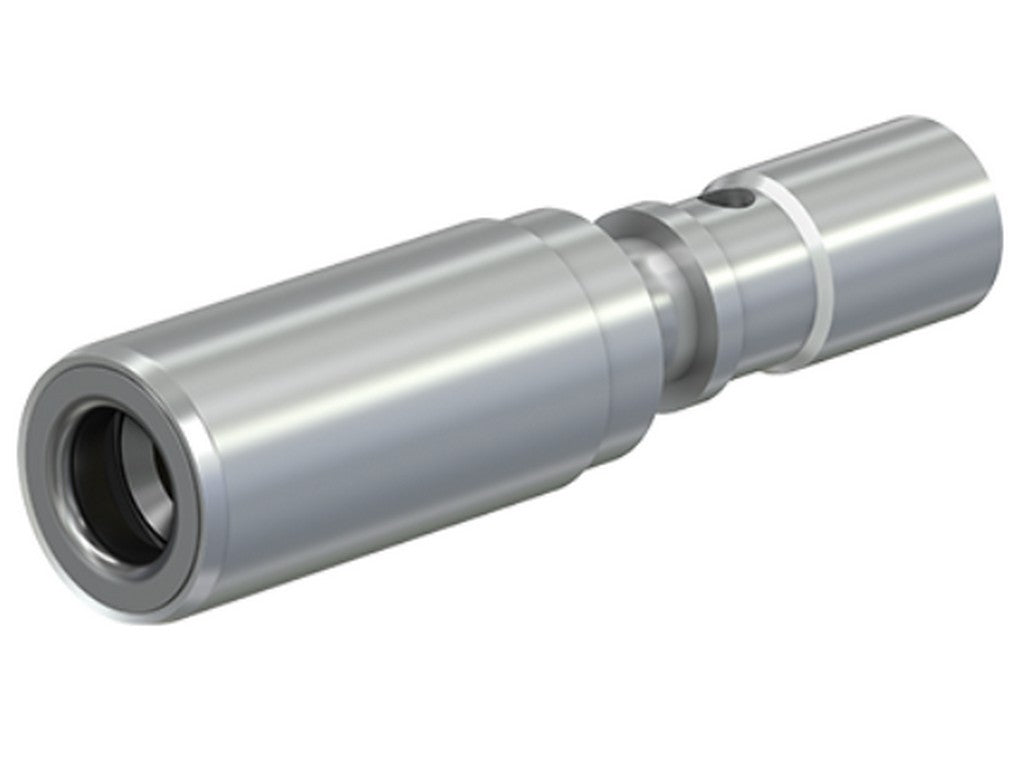

The STAUBLI 01.0310 is an uninsulated, single-pole socket from Stäubli’s range of round industrial connectors. It is used for creating robust and disconnectable power connections with high current capacity, typically in installations requiring a secure and mechanically stable connection.
It is part of the BP...AR-N series featuring a snap-in lock and LAIII contact type. In practice, this means a contact solution designed for repeated mating while maintaining low contact resistance. This is relevant in environments where both operational reliability and heat generation in the connection are critical.
The contact's cross-section is specified as 10 mm² copper, and it has a rated current of 80 A at 80 °C. The contact resistance is 100 µΩ, which helps limit losses and heating in the connection itself. It weighs only 0.026 kg, so it doesn't take up much space in the assembly.
The socket also has an extraction force of 25 N and an insertion force of 30 N, which gives an indication of its feel during assembly and handling. Furthermore, it is short-circuit rated for 1.2 kA for 1 second, 0.7 kA for 3 seconds, and has a rated peak withstand current of 8 kA.
Typical applications
- Power connections in industry and electrical panels
- Power distribution and switchgear
- Busbar connections
- Test benches and measurement setups
- Machine systems requiring a disconnectable power connection
Specifications
- Manufacturer: STAUBLI
- MPN: 01.0310
- Stäubli type: BP6AR-N/10-S
- Contact type: LAIII
- Series: Round Connectors 1-pole uninsulated
- Contact form: socket, BP...AR-N
- Cross-section: 10 mm² copper
- Rated current: 80 A at 80 °C
- Contact resistance: 100 µΩ
- Extraction force: 25 N
- Insertion force: 30 N
- Weight: 0.026 kg
- Short-circuit current 1 s: 1.2 kA
- Short-circuit current 3 s: 0.7 kA
- Rated peak withstand current: 8 kA
See datasheet from the manufacturer
