STAUBLI 01.0311

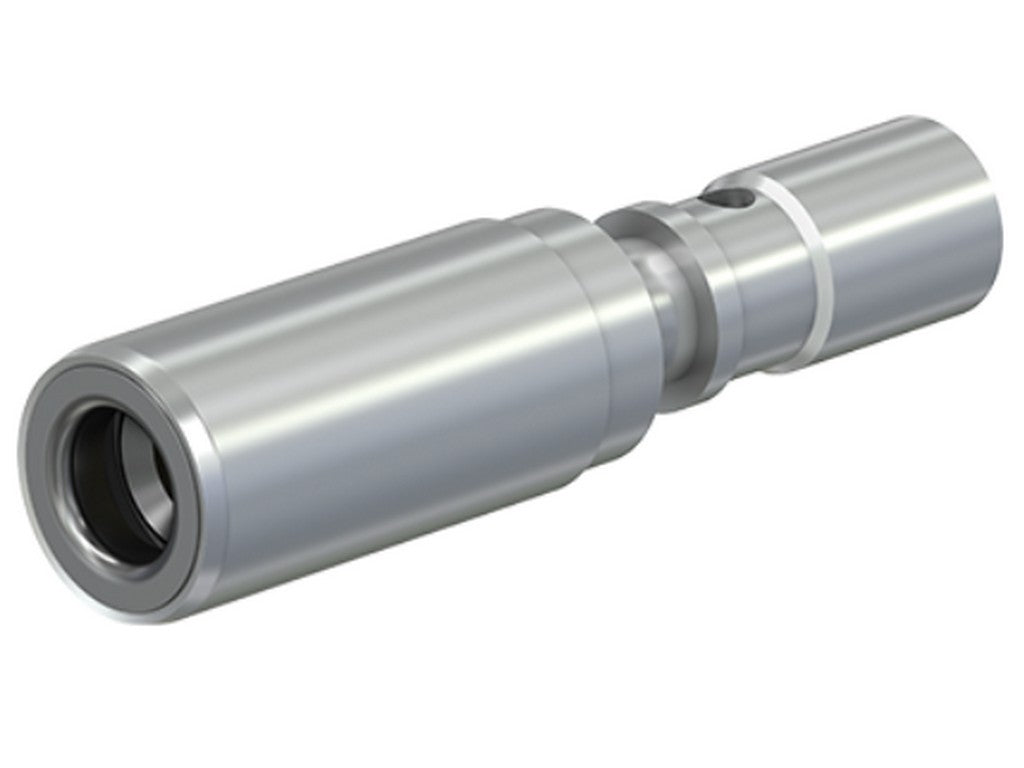

The STAUBLI 01.0311 is a single-pole, uninsulated male contact from the Stäubli series for round industrial connectors. It belongs to the part of the range where a robust, pluggable power connection for high currents is required, without the contact itself being enclosed in an insulated sleeve.
This is the BP6AR-N/16-S type with snap-in lock and crimp termination. The contact insert is MULTILAM LAIII, which is Stäubli's contact technology with constant spring pressure against the contact surface. This is important in practice because it provides a stable connection with low contact resistance, even when the connection needs to be used many times and under demanding conditions.
For a professional, it is particularly relevant that the contact is designed for 16 mm² copper conductor and is rated for 100 A at 80 °C. At the same time, the contact resistance is 100 µΩ, and the mechanical coupling is described with insertion/extraction forces of 30 N and 25 N respectively. This makes it suitable when you want a connection that is both securely seated and can still be disconnected without undue resistance.
The dimensions are compact for its size class, and the weight is 0.026 kg. The contact is also rated with a short-circuit current of 2 kA for 1 second and 1 kA for 3 seconds.
Typical applications
Stäubli specifies this type for industrial applications such as power distribution, switchgear, busbar connections, production systems, and test benches, where a simple, reliable single-pole connection is required.
Specifications
- Manufacturer: STAUBLI
- MPN: 01.0311
- Type: BP6AR-N/16-S
- Contact technology: MULTILAM LAIII
- Termination: Crimp
- Lock: Snap-in lock
- Conductor cross-section: 16 mm² Cu
- Rated current: 100 A at 80 °C
- Contact resistance: 100 µΩ
- Insertion/Extraction force: 30 N / 25 N
- Short-circuit current: 2 kA (1 s) / 1 kA (3 s)
- Weight: 0.026 kg
- Dimensions: ØA 12 mm, ØB 6 mm, C 23 mm, D 48.5 mm, ØE 9 mm, ØK 6 mm, H 28 mm, L 14 mm
- See datasheet from the manufacturer
