STAUBLI 33.0205

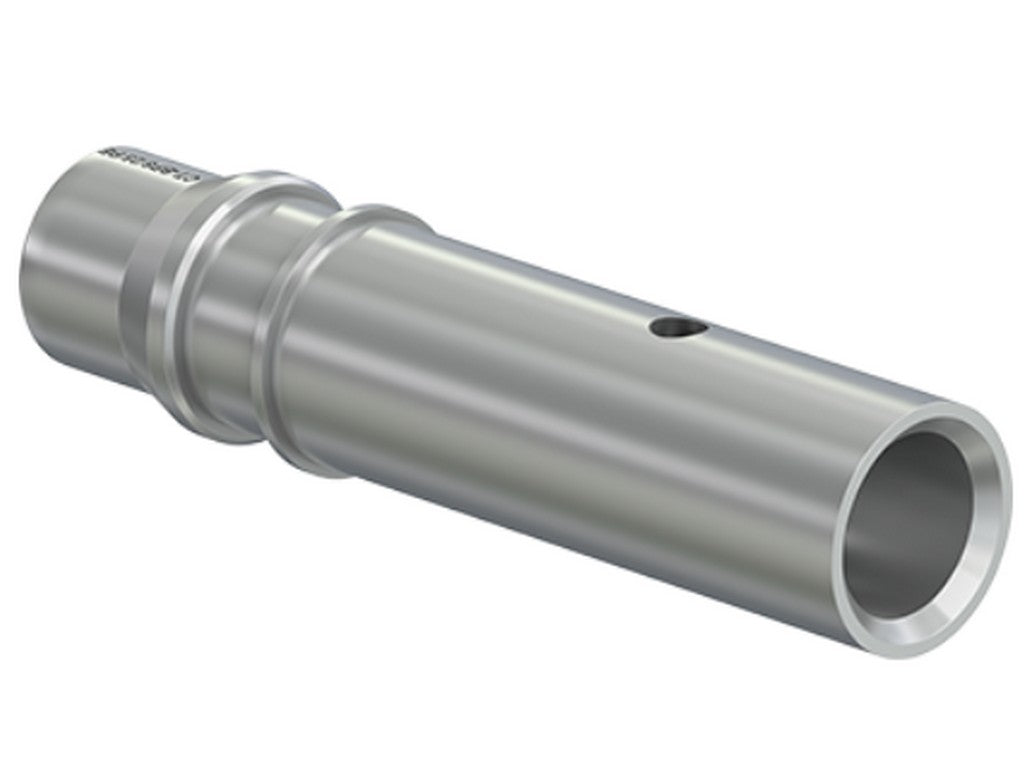

The STAUBLI 33.0205 is a socket contact for the CombiTac uniq series. It is an Ø8 mm first-mate contact, meaning a contact designed to engage first, so that the protective earth is connected before the rest of the connection is established. This is an important feature in modular couplings where a safe and controlled connection build-up is desired.
The contact is designed for crimp termination on copper conductors of class 5 and 6 and is used only for protective earth (PE). It handles a conductor cross-section of 25 mm², equivalent to AWG 4, and is rated with a 3-second short-circuit current of 1.3 kA. In the CombiTac context, it is part of the robust earthing connections used with the other modules in the system.
Like other Ø8 mm CombiTac contacts, it is designed for repeated mating and un-mating. The official catalog data indicates 100,000 mating cycles and an average insertion/withdrawal force of 6.5 N for Ø8 mm contacts.
See datasheet from the manufacturer
Typical Applications
Used in CombiTac uniq setups where protective earth must be routed as a separate and reliable contact in a modular connector system.
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0205
- Type: CT-BP8/25/PE-L AG
- Contact type: Socket (female)
- Contact size: Ø8 mm first-mate contact
- Termination: Crimp
- Conductor material: Copper, class 5 and 6
- Application: Protective earth (PE) only
- Conductor cross-section: 25 mm²
- AWG: 4
- Short-circuit current, 3 s: 1.3 kA
- Average withdrawal force for Ø8 mm contacts: 6.5 N
- Mating cycles: 100,000
