CAD component from STAUBLI

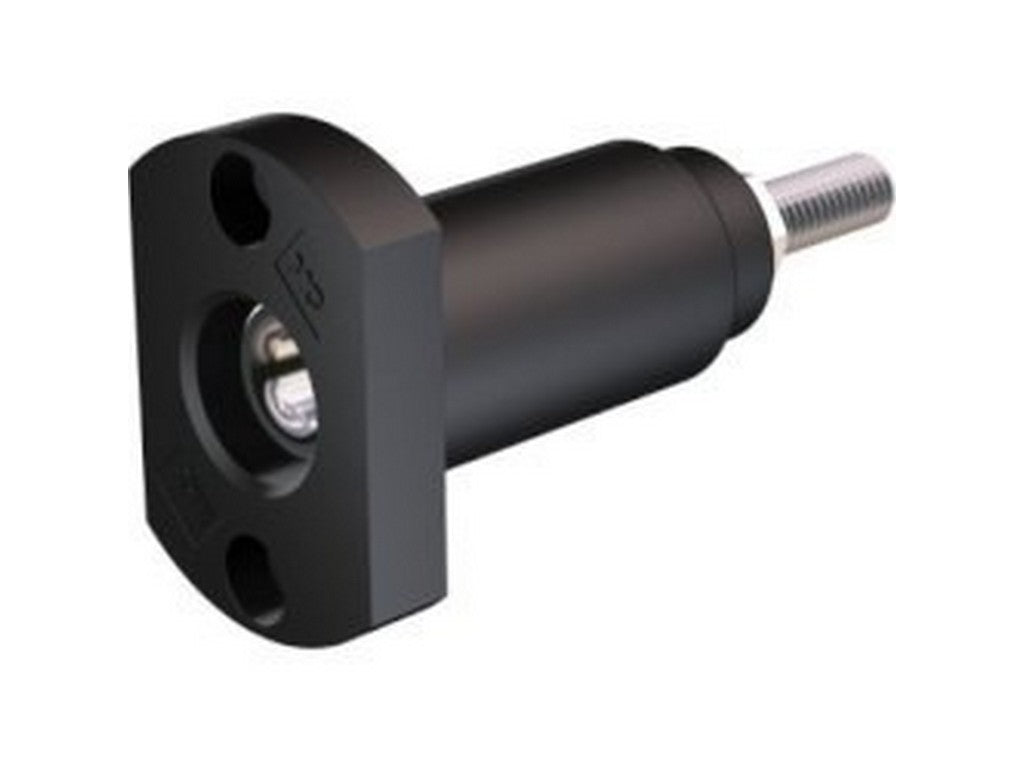

This description covers the CAD component EBB10-V0 from STAUBLI, registered in the Stäubli Electrical Connectors CAD catalog. The product is listed as EBB10-V0 with manufacturer's part number 01.0475 and appears in the catalog section "Catalog IS Slideinline".General data
- Product name: EBB10-V0
- Manufacturer: STAUBLI
- Manufacturer's part number: 01.0475
- CAD component ID / file name: 10027817.ipt
- Created with: INVENTOR 2012
- Assigned catalog section: Catalog IS Slideinline
- Available CAD formats (as indicated by catalog entry): ipt, igs, sat, stp
Documentation and verification
The information has been verified in the Stäubli Electrical Connectors CAD catalog via the manufacturer's CAD file library. The catalog entry specifies the file identifier 10027817.ipt and shows that the CAD model was created with Autodesk Inventor 2012. According to the catalog text, the CAD files are supplied in one color and one length for the individual entries.
Specifications
- Product: EBB10-V0.
- Manufacturer: STAUBLI.
- Manufacturer's part no.: 01.0475.
- CAD component ID / file: 10027817.ipt.
- Catalog section: Catalog IS Slideinline.
- Created with software: INVENTOR 2012.
- Specified CAD formats: ipt, igs, sat, stp.
- Note: CAD files are supplied in one color and one length according to the catalog.
Source
Information verified in Stäubli Electrical Connectors CAD catalog (standstep.ec.staubli.com).
