STAUBLI 33.0170

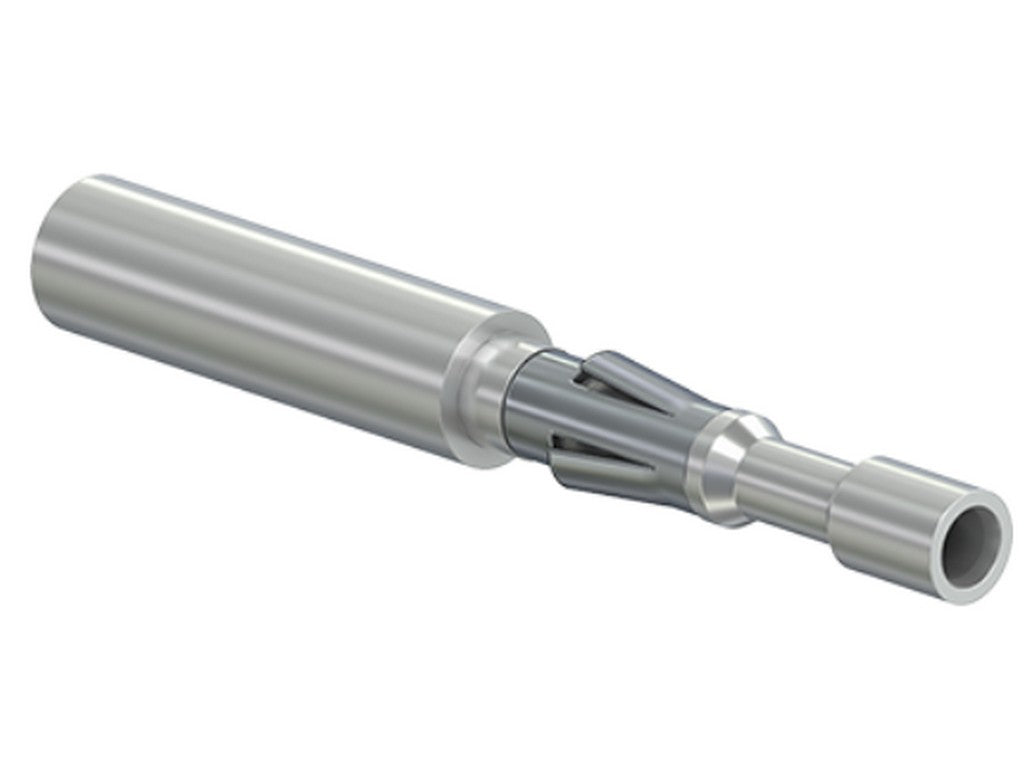

The STAUBLI 33.0170 is a plastic optical fiber contact for the CombiTac system. It is used as a socket in a fiber optic connection, where it is integrated with the contact carrier CT-E-3POF/B. In practice, it is the part that helps guide and secure the POF fiber correctly in a modular connection.
The contact is designed for POF multimode cables with a core/cladding diameter of 980/1000 µm and a primary coating of 2200 µm. This makes it relevant when working with plastic optical fiber in industrial connections where fiber and mechanical fit must integrate into the same system.
For connection loss, the value is specified as < 3 dB at 650 nm, depending on the assembly. The numerical aperture is 0.47. At the same time, the specified mating durability is 500 mating cycles, so it is intended for repeated use in a professional setup.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- Item number: 33.0170
- Type: CT-B/POF plastic optical fiber contact (socket)
- For use with: CT-E-3POF/B contact carrier
- For cable type: POF multimode
- Core/cladding diameter: 980/1000 µm
- Primary coating: 2200 µm
- Insertion loss: < 3 dB at 650 nm, depending on assembly
- Numerical aperture: 0.47
- Mating durability: 500 mating cycles
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
