STAUBLI 65.3321-29

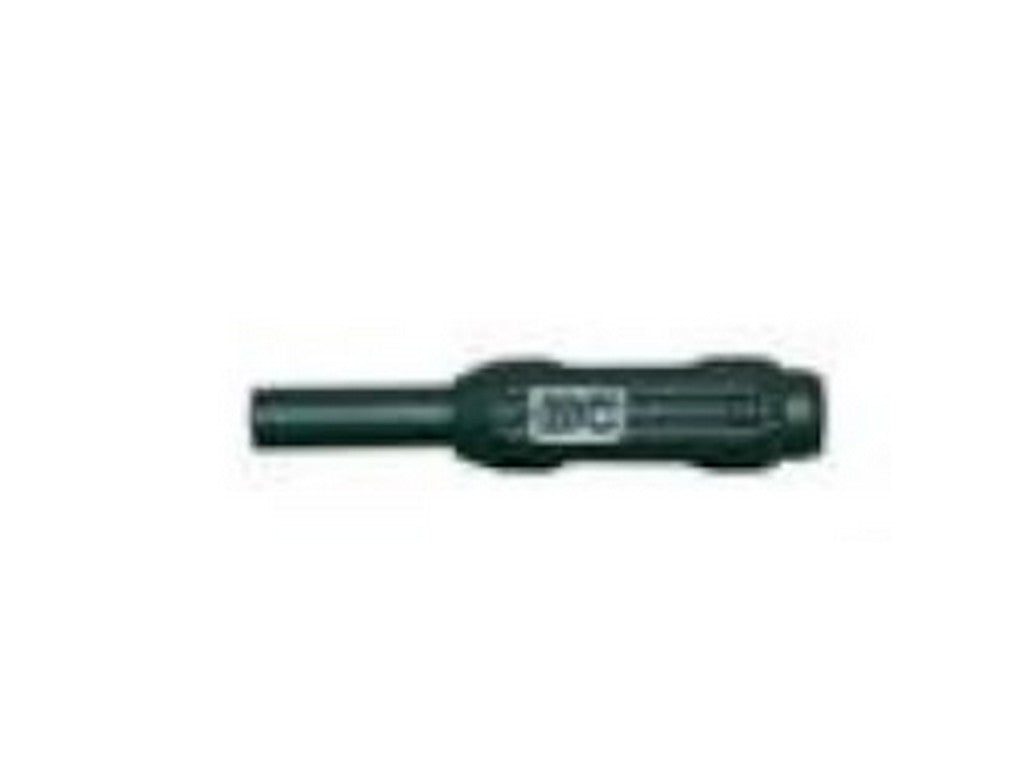

The STAUBLI 65.3321-29 is an in-line bushing from the Stäubli MS1525-B series for building connection cables. It is used when making a cable with a Ø 1.5 mm connection in medical equipment or other equipment where this plug dimension is used.
The special feature of the series is the spring-loaded MULTILAM contact, which maintains stable contact pressure. In practice, this means a secure and consistent connection over time. The bushing is gold-plated, and the insulation material is polyamide, which is suitable for steam sterilization. The color code for this variant is white.
The connection is made with solder or crimp connection, so it is intended for self-assembly of cables. The recommended conductor cross-section is 0.25–0.5 mm². The typical extraction force is around 3 N, and the series accepts a maximum plug diameter of 2.1 mm.
Typical applications
The series is developed for medical technology connections where reliable contact and materials that can withstand steam sterilization are required. It is suitable for building connection cables where a small, precise contact solution with a Ø 1.5 mm standard is desired.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 65.3321-29
- Series: MS1525-B
- Type: in-line bushing
- Contact: spring-loaded MULTILAM
- Contact size: Ø 1.5 mm
- Surface: gold-plated
- Insulation material: polyamide (PA)
- Color code: 29 / white
- Connection: solder or crimp connection
- Recommended conductor cross-section: 0.25–0.5 mm²
- Typical extraction force: approx. 3 N
- Maximum plug diameter: 2.1 mm
- Suitable for steam sterilization
