Product Overview

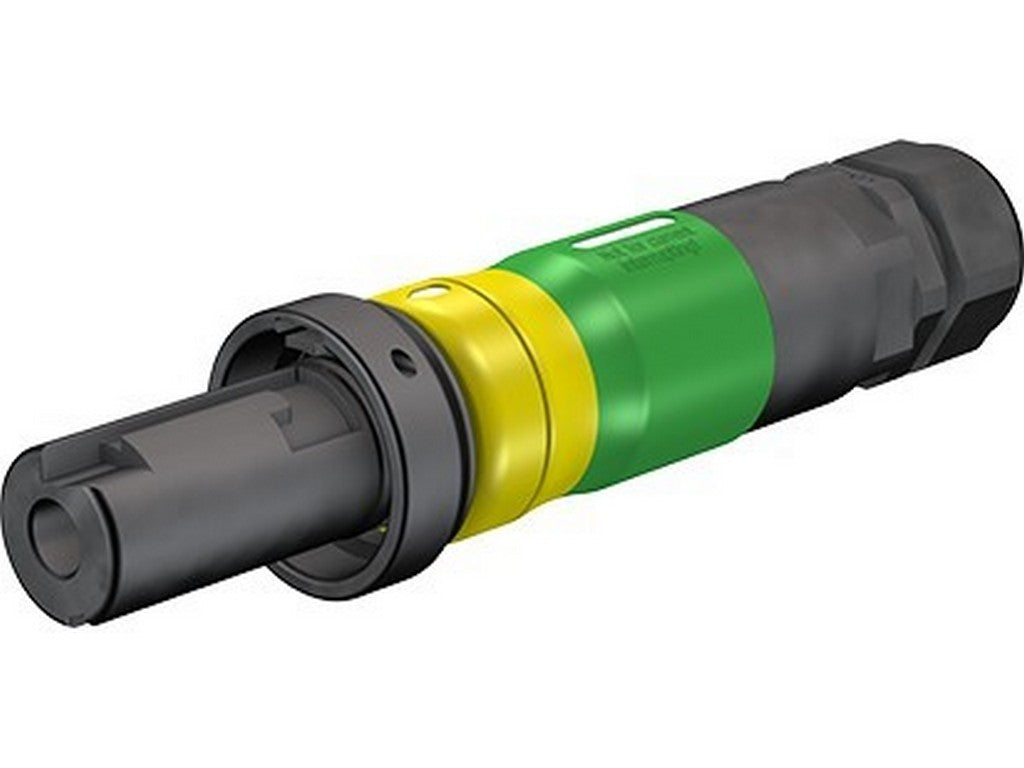

This single-pole insulated circular connector solution from Stäubli, identified as 15.0645C1-23, is part of the 10BV family of single-pole insulated circular connectors. The product features MULTILAM contact technology and is designed for high-voltage and high-current connections in accordance with the technical data provided by the manufacturer.Functional Features
- 10 mm contact diameter
- Bayonet locking for quick connection and disconnection
- Mechanical coding: C1 (polarization)
- Color code: -23 indicates blue
- AxiClamp cable termination as a listed option (M25 AxiClamp for 25–35 mm² cable cross-section)
Documentation
The manufacturer's catalog and technical data include type overviews, mounting instructions, and tables for the 10BV product family. See datasheet from the manufacturerTypical Applications
The areas of use are listed in the Stäubli catalog and include:- Temporary power supply
- Emergency power supplies
- Application in industrial environments such as facilities, aggregates, and test fields
Notes
All information in this text originates from the Stäubli catalog and technical data for the 10BV series. The descriptions are neutral and factual; mounting instructions and further technical details can be found in the manufacturer's documentation.Specifications
- Manufacturer: STAUBLI
- Manufacturer's part number: 15.0645C1-23
- Product series: 10BV single-pole insulated round connector
- Contact diameter: 10 mm
- Rated current (IEC): 250 A
- Voltage rating: AC 1000 V / DC 1500 V
- Cable termination: M25 AxiClamp variant for 25–35 mm² (listed in the catalog as KBT10BV-AX/M25/25-35)
- Mechanical coding: C1
- Color code suffix: -23 = blue
