STAUBLI 15.0647C1-20

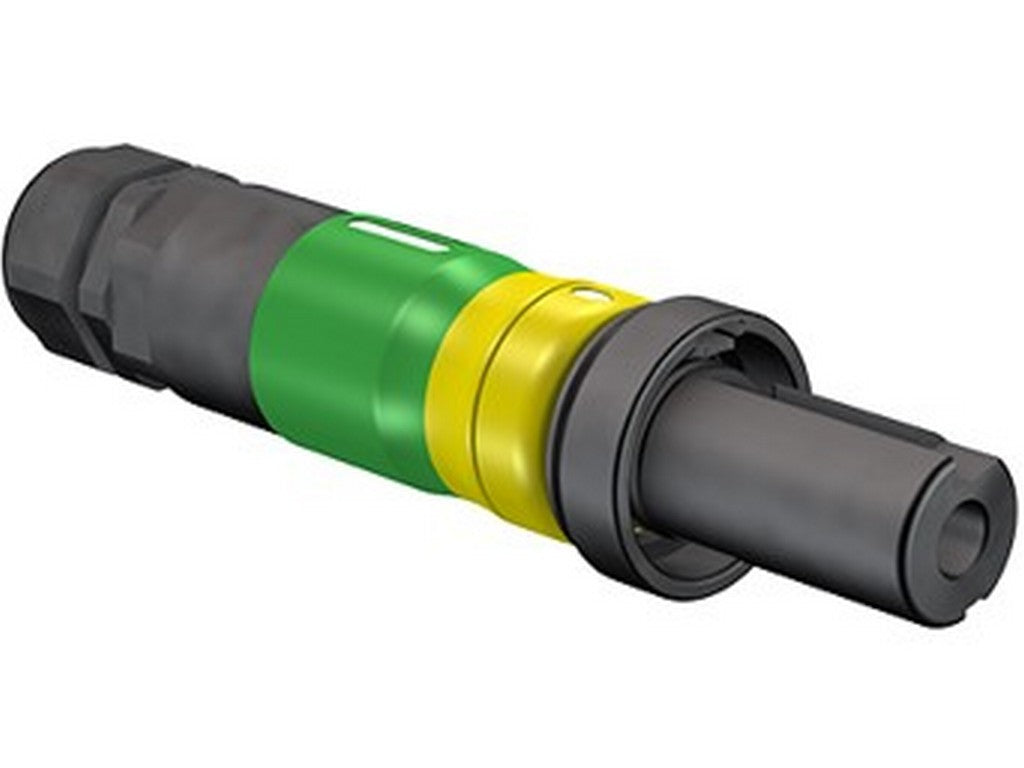

This is a single-pole circular connector from Stäubli in the 10BV series, designed for heavy-duty power connections where a secure and quick connection is desired. The solution uses AxiClamp cable termination and bayonet locking, allowing the connection to be assembled and locked easily. This is particularly relevant when the connection needs to be robust and, at the same time, easy to handle in practice.
The version is specified for conductor cross-sections of 50 mm² and 70 mm², corresponding to AWG 1/0 and 2/0, and the cable gland is for a diameter of 13–25 mm. In Stäubli's catalog, it belongs to the insulated single-pole circular connectors with a contact size of Ø 10 mm, and the AxiClamp sleeve is tightened with SW 16 mm.
In a professional installation, this type of connector is typically chosen when a compact and mechanically secure connection is desired, which is also designed for repeated use. The bayonet lock makes it easy to connect and disconnect, and the coded design helps ensure that the correct parts are assembled.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0647C1-20
- Series: 10BV
- Type: single-pole circular connector
- Cable termination: AxiClamp
- Locking: bayonet lock
- Conductor cross-section: 50 mm² and 70 mm²
- AWG: 1/0 and 2/0
- Cable gland: 13–25 mm
- AxiClamp sleeve wrench size: SW 16 mm
