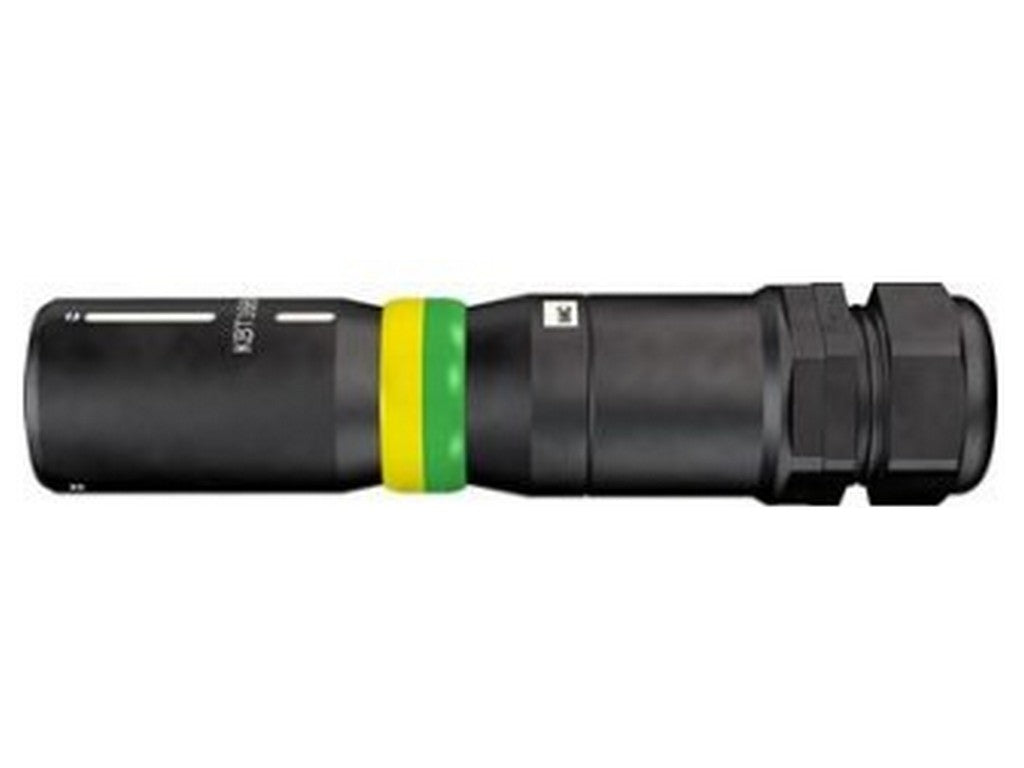

Stäubli socket KBT16BV-AX/M40/150-185
The Stäubli socket KBT16BV-AX/M40/150-185 is a single-pole round socket for heavy-duty current connections. It belongs to the 16BV series, which is rated for use up to 1000 V, and it is specified for a rated current of 530 A for the 16BV family. In practice, it is a component chosen when a robust and secure connection is needed in a professional installation requiring high current transfer.
The connection is secured with a bayonet lock, ensuring the plug remains firmly in place during use. Additionally, it features AxiClamp cable termination, which is the method by which the cable is installed. For this variant, the conductor cross-section is 150–185 mm², and the cable gland is specified for Ø 15–28 mm with M40. These are the specific data that determine whether it is suitable for the cable being used.
The color code must be selected when ordering. Here, color code 20 is indicated as an option, and this is relevant when it comes to identifying connections in the system.
