Stäubli 15.0654-22

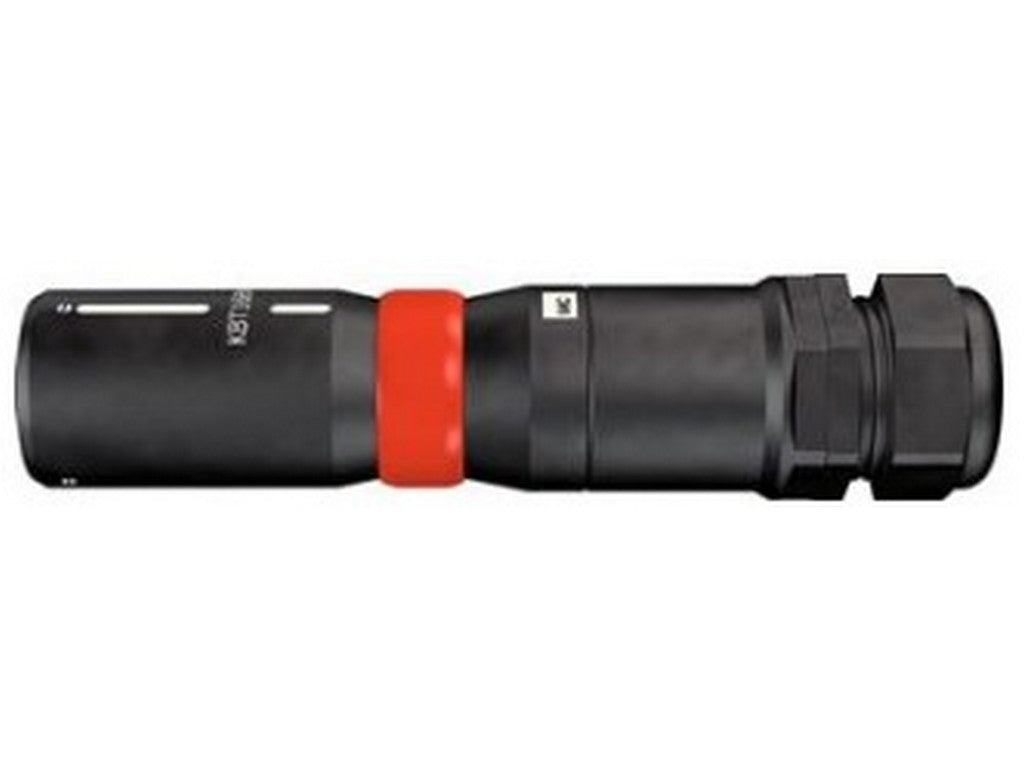

The Stäubli 15.0654-22 is a single-pole circular socket in the 16BV series, designed for heavy-duty connections where very high currents need to be conducted safely and in a controlled manner. It features a bayonet lock for quick and mechanically secure connection, and it is fitted with an AxiClamp cable termination for conductors of 150–185 mm².
In practice, it is a component used where a robust and comprehensive connection between cable and connection point needs to be established. The MULTILAM contacts are part of the design, contributing to a stable contact surface in the connection. It is rated for AC 1000 V and DC 1500 V, with a rated current of up to 530 A, depending on the cable cross-section.
The socket is rated IP2X when disconnected and IP65 when connected to its counterpart. This makes it relevant for professional installations where both handling requirements and protection in the connected state are important. The cable gland is for M40 cable glands, and color code 22 indicates red.
Typical applications
This type of connection is typically seen in systems and equipment where very high currents and large cable cross-sections are involved, and where a lockable, single-pole connection is practical for daily operation.
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0654-22
- Product series: 16BV single-pole circular connector
- Type: Socket
- Lock type: Bayonet lock
- Cable termination: AxiClamp
- Conductor cross-section: 150–185 mm²
- Cable gland: M40
- Rated voltage: AC 1000 V / DC 1500 V
- Rated current: up to 530 A
- Contact technology: MULTILAM
- Protection class: IP2X disconnected, IP65 connected
- Color code: 22 (red)
- See datasheet from the manufacturer
