STAUBLI 15.0653-23

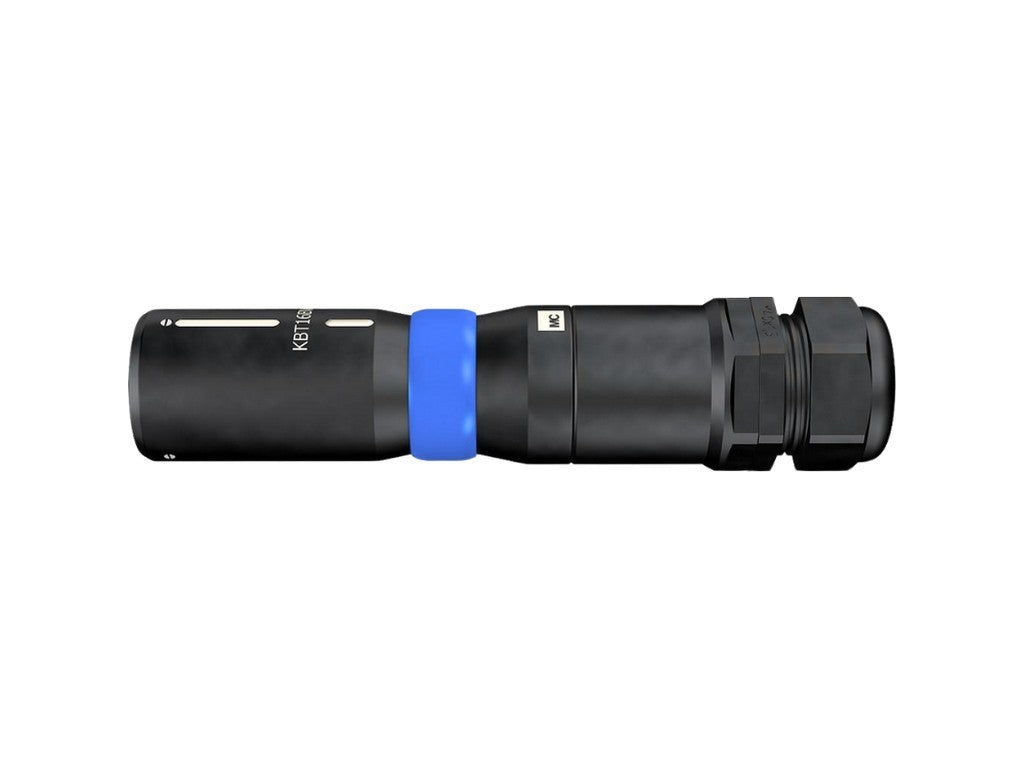

The STAUBLI 15.0653-23 is a round bayonet socket from the 16BV series, designed for AxiClamp connection. It is used as a heavy-duty connector where a secure and controlled connection is needed for conductors in the 95–120 mm² range.
For this type of application, the electrical and mechanical data are particularly important. The series is rated for AC 1000 V / DC 1500 V and a rated current up to 530 A according to IEC. This makes it relevant for installations where high currents are used and a stable contact is required. At the same time, it is part of a 16 mm connection system, so it fits into a professional setup with corresponding components.
This variant is listed under catalog number 15.0653-* and is specified for conductor cross-sections of 95–120 mm². The manufacturer's catalog also indicates that the color code must be specified. This is a practical detail when wanting to keep track of different versions in the same series.
To understand this part simply, it is, in practice, a socket for a large, current-carrying connection, where both assembly and subsequent handling must be robust and clear.
