Product Overview

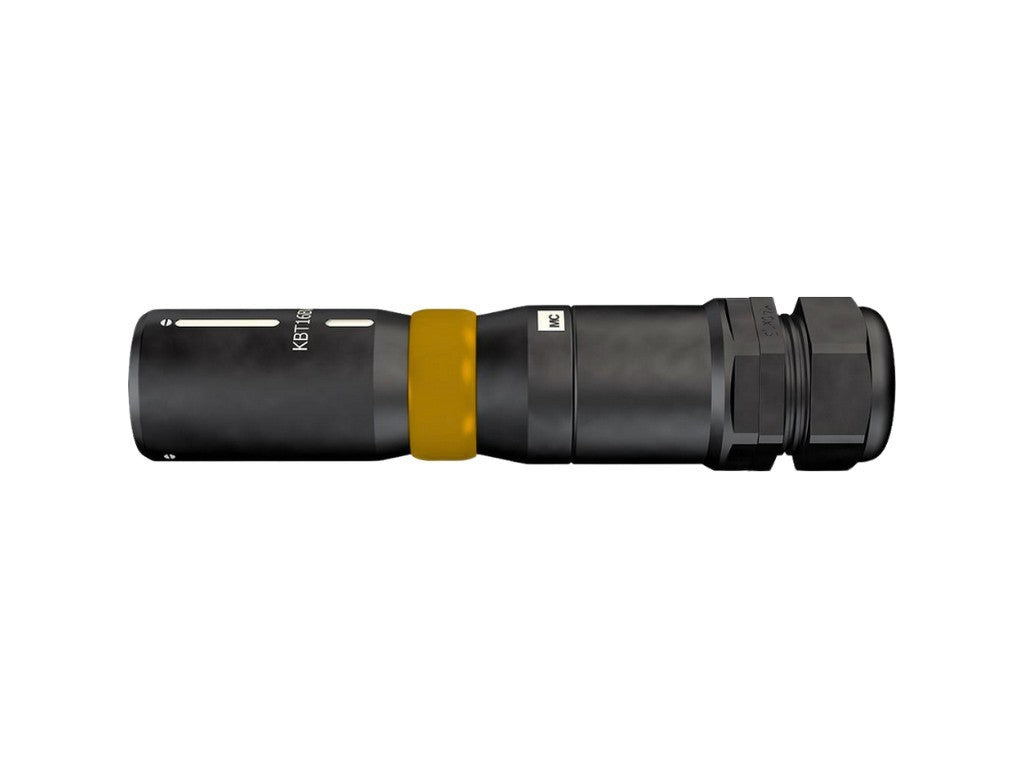

The KBT16BV-AX/M40/95-120 from Stäubli (Stäubli part number 15.0653-27) is listed in the Stäubli 16BV product flyer as a variant with AxiClamp (AX) termination and M40 cable gland. The product designation and catalog information specify a conductor cross-section range of 95–120 mm² for this version.Technical Description
This article is listed in the 16BV series and is described in the manufacturer's material with the following verified characteristics: AxiClamp (AX) as the connection principle, M40 cable gland, and a specified conductor cross-section from 95 to 120 mm². The 16BV series is specified in the catalog for up to AC 1000 V (IEC) and a rated current of up to 530 A, depending on the cable cross-section. The color code for variant 27 is specified as brown and must be added to the order number when ordering.Documentation
Further technical details and complete product information can be found in the Stäubli 16BV product flyer (data sheet). See data sheet from the manufacturerTypical Applications
- Listed in the manufacturer's document as used in switchgear (Schaltanlagen).
- Listed in the manufacturer's document as used in test fields (Prüffeldern).
- Listed in the manufacturer's document as used in emergency power supply systems in the low-voltage range (Notstromversorgungsanlagen im Niederspannungsbereich).
Specifications
- Manufacturer: STAUBLI
- Stäubli part number: 15.0653-27 (listed as KBT16BV-AX/M40/95-120)
- Product designation: KBT16BV-AX/M40/95-120
- Connection type: AxiClamp (AX) (indicated in the manufacturer's catalog)
- Cable gland: M40 (indicated in the manufacturer's catalog)
- Conductor cross-section (specified for this variant): 95–120 mm²
- Series specification: 16BV – specified for AC 1000 V (IEC)
- Rated current: up to 530 A, depending on cable cross-section (indicated in the manufacturer's catalog)
- Variant color code: 27 = brown (to be appended to the order number)
