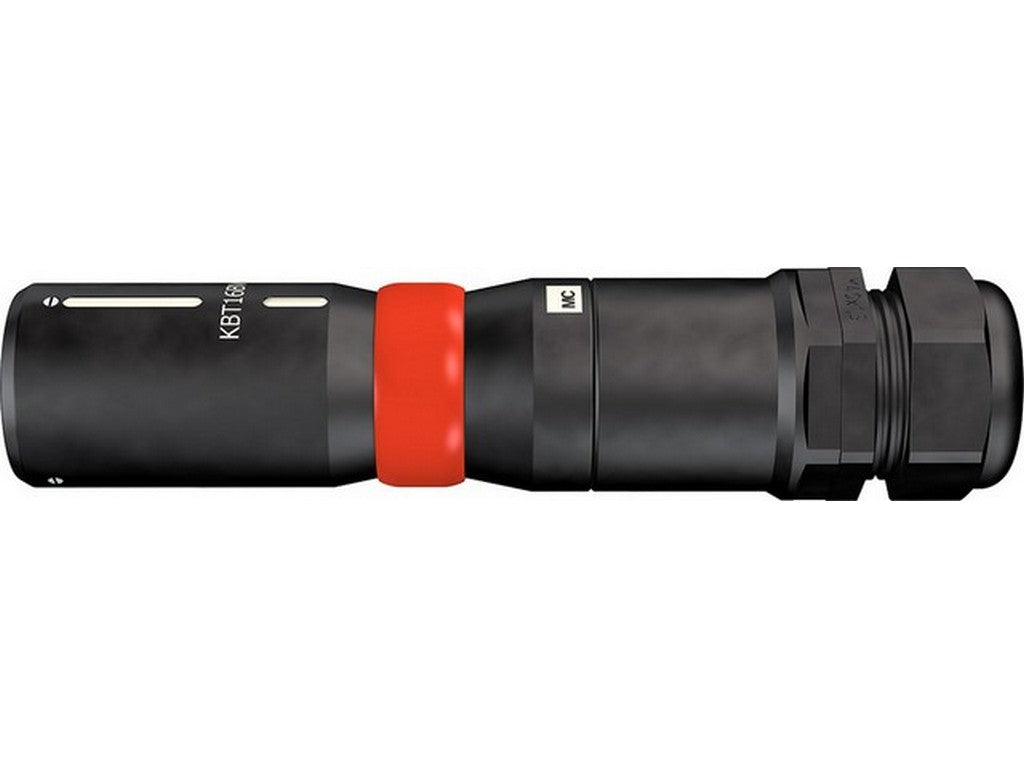

KBT16BV-AX/M40/95-120 (Stäubli, P/N 15.0653)
Product Overview
This product configuration, KBT16BV-AX/M40/95-120 (Stäubli part number 15.0653), is a KBT socket in the Stäubli 16BV circular connector series with a nominal pin/socket diameter of 16 mm. The configuration uses AxiClamp cable termination and is specified for conductor cross-sections of 95–120 mm² in this version.Important Technical Features
- Nominal pin/socket diameter: 16 mm
- AxiClamp cable termination for conductor cross-sections 95–120 mm² (applies to this sub-configuration)
- Series designation: 16BV circular connectors
- Insulation and operating voltage: AC 1000 V / DC 1500 V (specified for the 16BV series)
- Current capacity: up to 530 A depending on cable cross-section (specified for the 16BV series)
- Contact type: MULTILAM contacts (specified for the 16BV series)
- Bayonet locking and color coding as part of the series design
For detailed technical documentation, please refer to the manufacturer's product flyer for the 16BV series.
See manufacturer's datasheetTypical Applications
According to the manufacturer's information material, 16BV circular connectors are used in the following specific contexts:
- Switchgear (Schaltanlagen)
- Test fields (Prüffeldern)
- Emergency power supply systems in the low-voltage range (Notstromversorgungsanlagen im Niederspannungsbereich)
Specifications
- Manufacturer: Stäubli (Stäubli Electrical Connectors)
- Manufacturer's part number: 15.0653 (KBT16BV-AX/M40/95-120)
- Nominal pin/socket diameter: 16 mm
- Specified system voltage: AC 1000 V / DC 1500 V
- Specified current capacity: up to 530 A (depending on cable cross-section)
- Conductor cross-section for this configuration (AxiClamp): 95–120 mm²
- Protection classes: IP65 in mated condition; IP2X in unmated condition
- Temperature range (series designation): -40 °C … +90 °C
- Contact resistance (MULTILAM): ≤25 μΩ
- Short-circuit current (1 s / 3 s): up to 14 kA / up to 10 kA
- Surge current (impulse): up to 55 kA
- Test voltage (50 Hz / 1 min): 6.6 kV
- Development and assembly options: Crimp or AxiClamp connection (series designation); this part is specified with AxiClamp
- Extraction/insertion force: 114 N / 270 N (specified for the series)
- Max. torque during assembly (new condition): 30 N·m
Sources: Stäubli 16BV product flyer (specified datasheet) for technical data and type designations.
