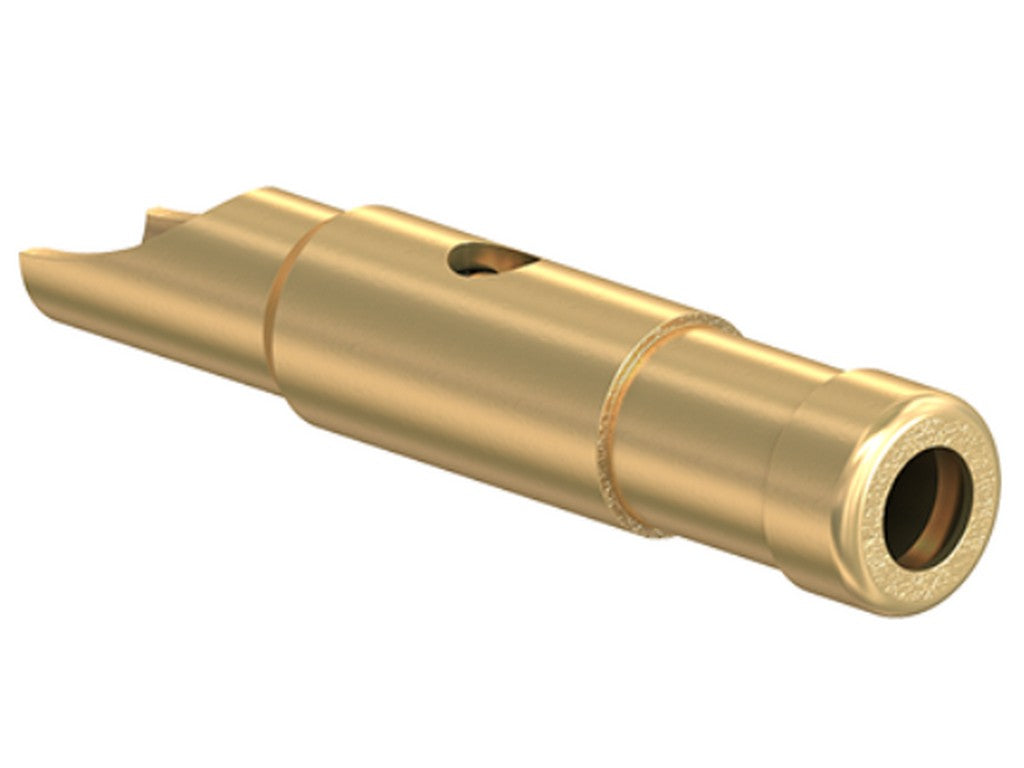

STAUBLI LS1-B
The LS1-B is a component for Stäubli's 1 mm plug system SLS1-B, where it is used in the construction of test leads and measurement connections. It is therefore not used as a standalone measuring probe, but as part of the plug assembly itself when test leads are to be assembled for professional use.
Here, the small dimensions and precise contact construction are particularly relevant. The contact is gold-plated, and the base material is CuZn. In practice, this means it is designed for a controlled electrical connection in a compact plug system. The LS1-B is part of equipment used for testing and measurement where reliable and consistent contact is required.
During assembly, a cable stripping of 3 mm is used, and the cable diameter can be up to 2 mm. This makes it suitable when the wire needs to be assembled in a small and precise plug system without unnecessary bulk.
The LS1-B is listed with item number 22.1008 and is part of Stäubli's SLS1-B documentation for the 1 mm system.
Specifications
- Manufacturer: STAUBLI
- MPN: 22.1008
- Product designation: LS1-B
- Part of SLS1-B 1 mm plug system
- Rated voltage: AC 30 V / 6 A
- Rated voltage: DC 60 V / 6 A
- Electrical contact: gold-plated (Au)
- Base material: CuZn
- Cable stripping: 3 mm
- Max. cable diameter: 2 mm
- Datasheet: See datasheet from the manufacturer
