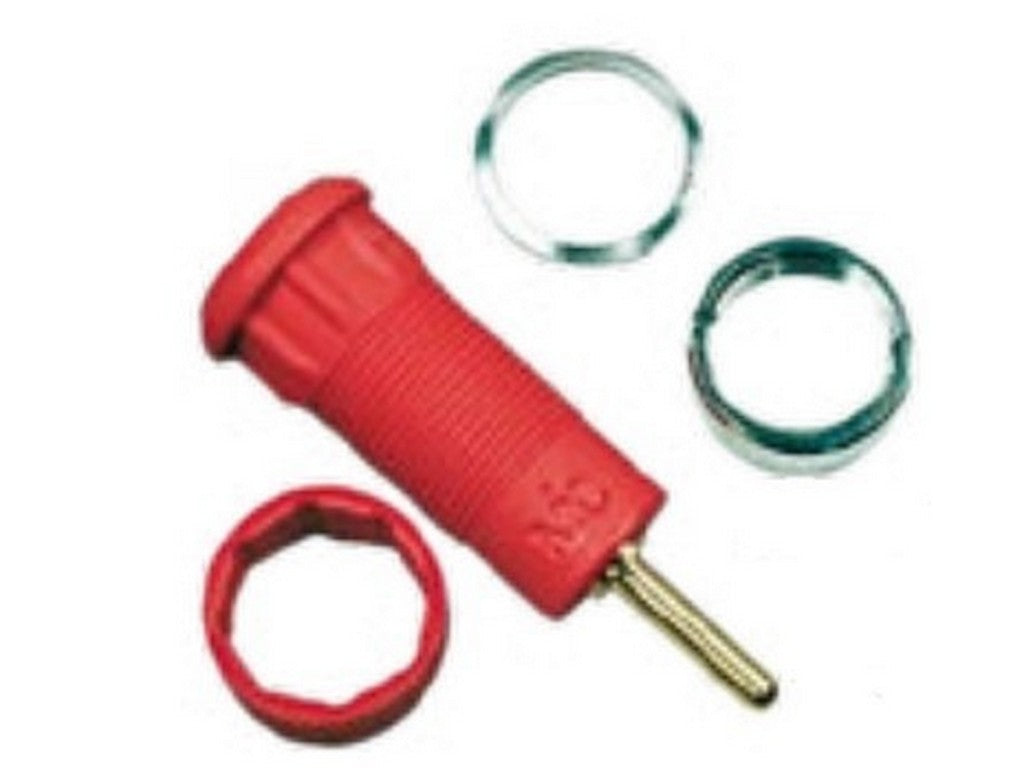

Panel terminal: Stäubli MLB2,0-L (65.3332-22)
The Stäubli MLB2,0-L is an insulated, gold-plated Ø 2.0 mm panel terminal with a spring-loaded MULTILAM contact. Variant 65.3332-22 indicates color code 22 (red) in the Stäubli catalog. The product's main function is as a panel-mounted contact point with the MULTILAM contact's constant spring pressure for low contact resistance.
Technical description
- Contact form: MULTILAM (spring-loaded)
- Contact diameter: Ø 2.0 mm (pin/connector dimension stated as Ø 2 mm)
- Surface: gold-plated
- Insulation: insulated design (stated in the catalog)
- Connection type: specified for solder connection
- Withdrawal force: stated as > 10 N
- Overall length: stated as 29 mm in the catalog
- Panel reference: the catalog shows Ø 10 mm panel reference for mounting dimension
Documentation
Product details and technical information are published in Stäubli's "Medical technology main catalog" (MED-Main-11014109-en.pdf). For further verified information, please refer to the manufacturer's catalog:
See datasheet from the manufacturer
Typical applications
According to Stäubli's catalog, touch-protected Ø 2 mm connection systems are used for the transmission of body-related signals. The catalog specifically highlights applications for conducting body action potentials, for example for ECG and heart monitors, which represent verified application types for these connector types.
Specifications
- Manufacturer: Stäubli
- Product name: MLB2,0-L
- Manufacturer's part number: 65.3332-22
- Type: insulated Ø 2.0 mm panel terminal
- Contact technology: MULTILAM, spring-loaded
- Surface treatment: gold-plated
- Connection: solder connection
- Withdrawal force: > 10 N (stated in the catalog)
- Overall length: 29 mm (stated in the catalog)
- Panel dimension reference: Ø 10 mm (catalog illustration)
- Color code: 22 = red (Stäubli catalog color codes)
