Product Description

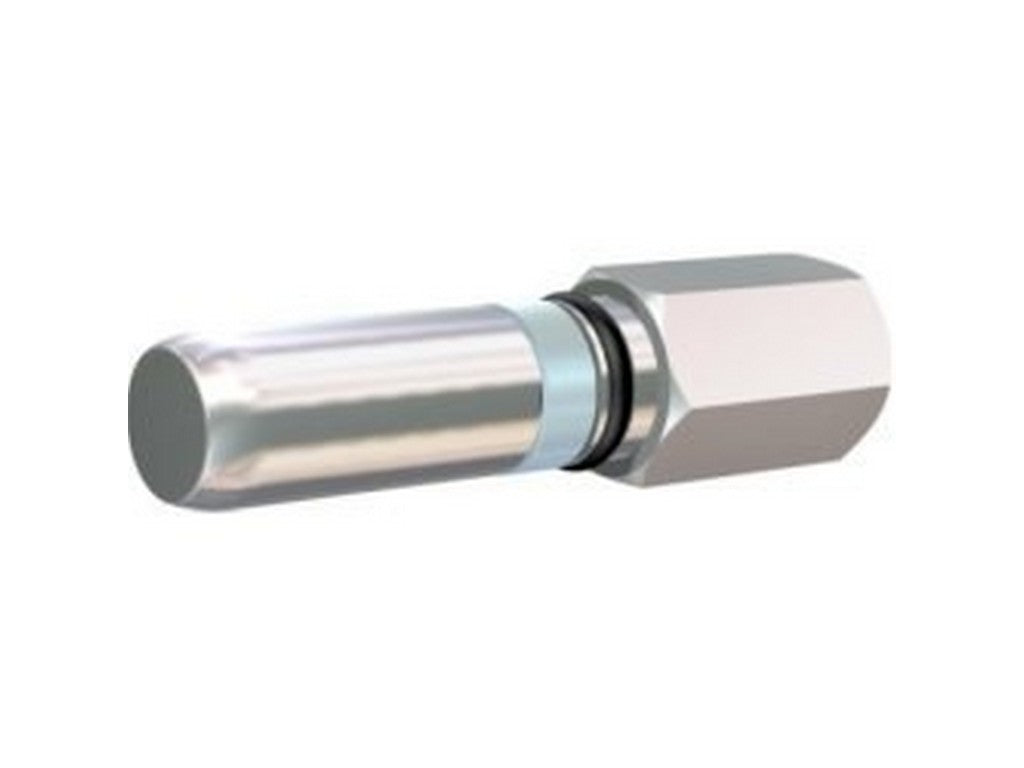

The SIG10AR-N/10 is a 1-pole, uninsulated round connector (plug) specified as order no. 06.0007 in the Stäubli catalogue for "Round Connectors 1-pole, uninsulated". The product is designed as a plug with internal threaded termination (SIG...AR-N) and is listed in the catalogue table with an M10 internal thread. The SIG10AR-N/10 belongs to the Stäubli AR locking system for uninsulated round connectors and utilizes MULTILAM contact technology.Features
- Plug with internal threaded termination (M10 specified in catalogue)
- Nominal contact diameter: 10 mm
- Rated current: 180 A (at 80 °C)
- Contact material: chrome-plated/silver-plated brass as specified in the catalogue
- MULTILAM contact technology and AR locking system mentioned in manufacturer's material
Documentation
The description and technical specifications are taken from the Stäubli catalogue for 1-pole, uninsulated round connectors. For complete catalogue information, dimensional drawings, and references to matching parts and accessories, please refer to the manufacturer's catalogue: See datasheet from the manufacturerTypical Applications
Used where single-pole, uninsulated round connections with internal threaded termination are required, as mentioned in the manufacturer's catalogue. Examples specified in the catalogue include:- Power industry
- Switchgears
- Busbar connections
- Manufacturing systems
- Test benches
- Cable coupling
Specifications
- Manufacturer: STAUBLI
- Manufacturer's part number: 06.0007
- Product name/order: SIG10AR-N/10
- Product category: Round Connectors 1-pole, uninsulated (plug with internal threaded termination)
- Threaded termination: M10 (specified in catalogue)
- Nominal contact diameter: 10 mm
- Rated current: 180 A (at 80 °C) — specified in the catalogue
- Contact technology: MULTILAM (specified in the catalogue)
- Material: silver-plated brass — specified in the catalogue
