Refractometer
Description

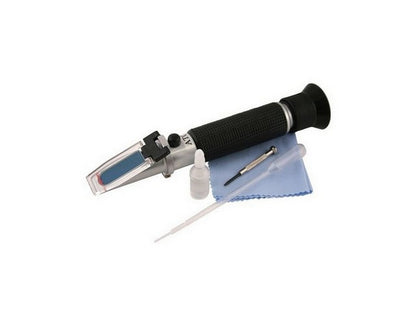

The Refractometer Brix 0-32% with ATC (15305032) from DIESELLA is an optical measuring instrument for determining the refractive index of liquids, particularly suitable for Brix measurements. The instrument is made of copper for increased chemical resistance and features automatic temperature compensation (ATC) to reduce temperature-related errors during measurement.Function and construction
The Refractometer Brix 0-32% (15305032) measures changes in light refraction as it passes through a liquid and converts this into a Brix value. Information in the manufacturer's material identifies the following key features:- Measuring range: 0–32% Brix
- Resolution: 0.2% Brix
- Accuracy: ±0.20% Brix
- ATC: Yes (automatic temperature compensation)
- Construction: Copper housing
Typical applications
The Refractometer Brix 0-32% with ATC can be used for the measurement tasks explicitly mentioned by the manufacturer:- Measuring sugar content in fruit, vegetables, juice, and other sugary drinks
- Determining sugar content in malt
- Measuring water content in honey
- Assessing frost protection capability in coolants and antifreezes
- Determining salt content in seawater and alcohol content in clear spirits
- Measuring the density or chemical properties of liquids, such as acid richness in batteries and urine (as indicated by the manufacturer)
Documentation
See datasheet from the manufacturerSpecifications
- Item no.: 15305032
- Product type: Refractometer
- Model: Brix
- Measuring range: 0–32% Brix
- Resolution: 0.2% Brix
- Accuracy: ±0.20% Brix
- Length: 170 mm
- Diameter: Ø 40 mm
- Material: Copper
- Automatic temperature compensation (ATC): Yes
- Net weight: 0.210 kg
- Gross weight: 0.400 kg
- Barcode: 5708004011590
