C-C sleeve connector
Description

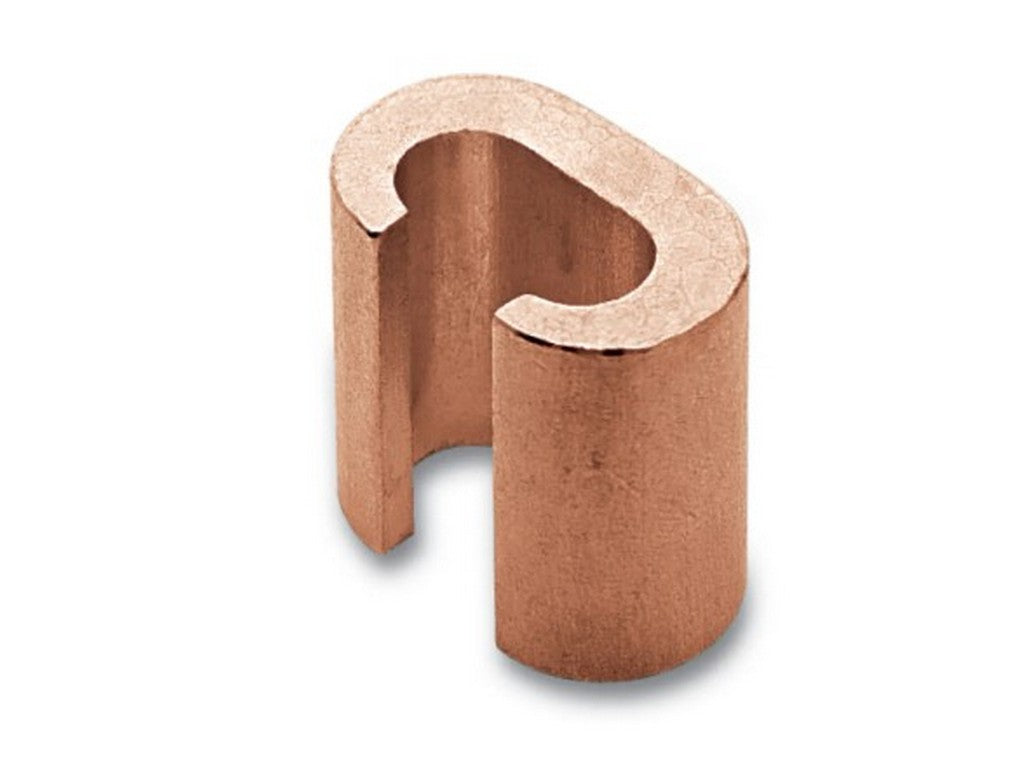

The C-C sleeve connector C120-C120 from CEMBRE is a compression connector made of copper profile with a purity higher than 99.9%. The connector is annealed (heat-treated) and has an oval crimp geometry. The product is designed to connect through-conductors and branch connections in wiring systems in accordance with the manufacturer's specifications.
Function and Installation
The C120-C120 C-C sleeve connector is used for connecting two copper conductors, where one conductor is run through (passant) and another is inserted as a branch (derivato). The manufacturer's installation instructions describe the following general steps:
- If necessary, clean any oxidized surface on the conductors with a metal brush along the area to be connected.
- Place the connector on the through-conductor and insert the branch conductor into the connector.
- Perform compression with the appropriate die type and in the sequence indicated by the manufacturer's table and figures.
For details on the selection of crimping dies and the recommended compression sequence, refer to the manufacturer's documentation.
Typical applications
- Branching from overhead distribution lines.
- Connection in grounding networks.
Documentation
Specifications
- Manufacturer: CEMBRE
- Product type: C-C sleeve connector, type C120-C120
- Manufacturer's item number: 2490630
- Material: Copper profile with purity > 99.9%
- Condition: Annealed (hardened/heat-treated)
- Crimp geometry: Oval
- Supported conductor cross-sections (C120-C120): through-conductor 110–125 mm²; branch 25–125 mm²
- Min. operating temperature: -50 °C
- Max. operating temperature: 150 °C
