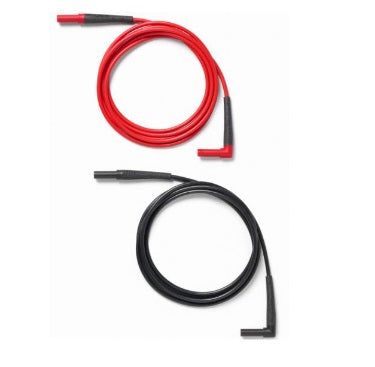

Fluke TL324 Test Lead Set

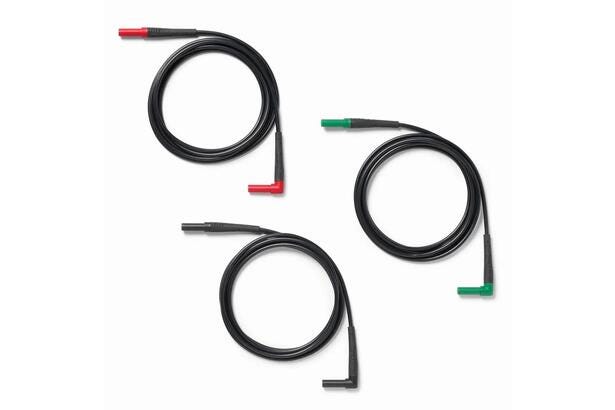

The Fluke TL324 is a set of test leads for measurement work where a measuring instrument needs to be connected safely and practically to a system or component. It is a SureGrip set with straight to angled connections, making it easier to grasp, even when space is limited around the measurement point.
This type of test lead is typically used with multimeters and other test equipment when taking measurements in installations or equipment with high voltage. Here, it is particularly relevant that the set is rated for CAT III 1500 V and CAT IV 1000 V, because this indicates that it is designed for demanding measurement situations where the safety class is very important.
The leads have silicone insulation, which makes them flexible to work with, and the 2 m length provides a little more freedom of movement during measurement. The WearGuard indicator is a practical detail because it shows when the leads are starting to wear out, making it easier to assess whether the set should be taken out of use. This is an advantage in daily testing and service, where the leads are often used many times.
This is a test lead set for professional use when an original Fluke solution is desired that fits the task and the safety requirements associated with higher measurement ranges.
Specifications
- Fluke TL324 test lead set, item number 6071945
- SureGrip test leads with straight to angled connections
- CAT III 1500 V
- CAT IV 1000 V
- 30 A
- Silicone insulation
- Length: 2 m
- Operating temperature: -20 °C to 50 °C
- WearGuard indicator for wear
The content has been generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
