STAUBLI 33.0143

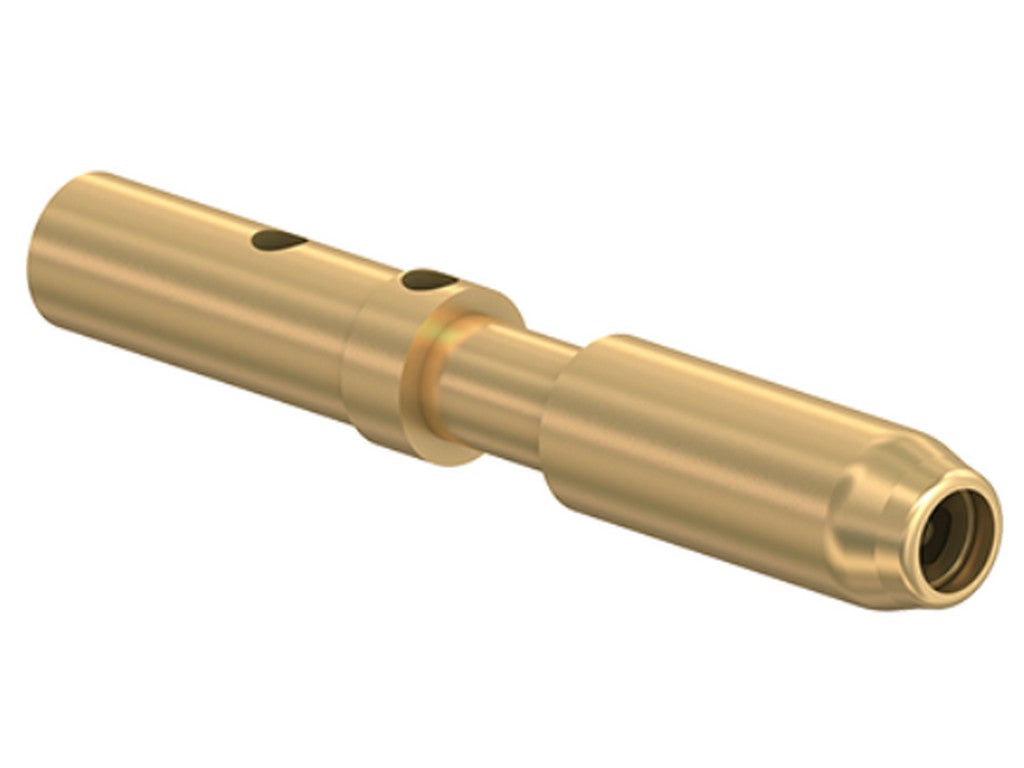

The STAUBLI 33.0143 is a Ø1 mm socket contact for CombiTac contact carriers. It is used when a compact signal connection is required in a modular CombiTac setup, where the contact is seated in a contact carrier and forms part of the overall connector.
In the catalog, it appears as CT-BP1/0.25-0.75 AU and CT-BP1ET/0.25-0.75 AU. It is designed for crimp termination, so the conductor and contact are joined by pressing. This is a common and controlled method in professional assembly where a stable termination of the individual conductor is desired.
The contact is specified for conductor cross-sections of 0.25, 0.5 and 0.75 mm², corresponding to AWG 24, 20 and 18. The associated rated currents are specified as 3 A, 4 A and 6 A for the respective conductor sizes. It is shown as compatible with CT-E1-26, CT-E1-15 and CT-E1-6 carriers.
It is therefore a small but important component when building a CombiTac connection with smaller signal currents and a precise mechanical fit in the system.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0143
- Contact type: Ø1 mm socket contact
- Series: CombiTac uniq
- Catalog designations: CT-BP1/0.25-0.75 AU and CT-BP1ET/0.25-0.75 AU
- Termination: Crimp
- Supported wire cross-sections: 0.25, 0.5 and 0.75 mm²
- AWG: 24, 20 and 18
- Rated current: 3 A, 4 A and 6 A
- Compatible carriers: CT-E1-26, CT-E1-15 and CT-E1-6
