STAUBLI 33.0510

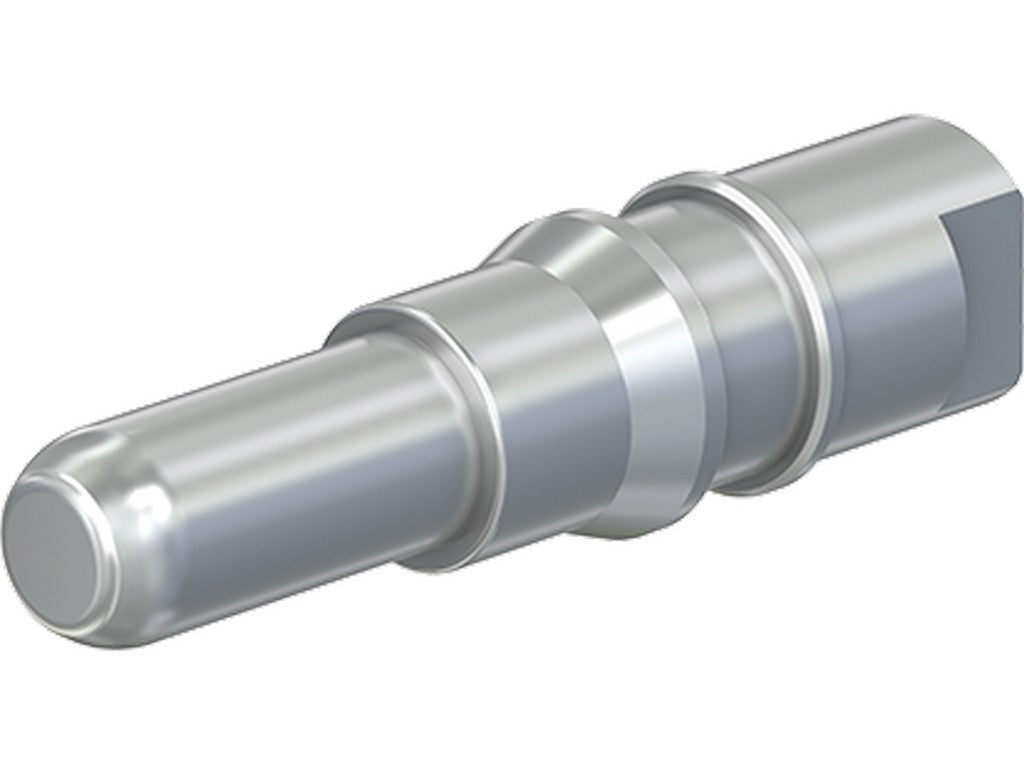

Stäubli 33.0510 is a contact for the CombiTac uniq system, specifically the CT-S8/M6 AG type. It is used as part of a modular connector system where the required connections are assembled in one and the same frame or housing.
This is a screw connection, so the conductor is terminated with cable lugs and fastened in the contact. This makes it relevant when working with power connections in a professional setup, where both assembly and electrical contact must be controlled.
The documented conductor cross-sections of the contact are 10, 16, 25 and 35 mm², and the corresponding rated currents are 66 A, 89 A, 100 A and 120 A. It is therefore a contact that belongs to the heavy-duty end of the CombiTac system, where a solid power connection is required.
CombiTac uniq is based on Stäubli’s MULTILAM contact technology and is specified for up to 100,000 mating cycles. This is an important feature in installations where there are many connections, and where a stable contact over time is also desired.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0510
- Contact type: CT-S8/M6 AG
- For CombiTac uniq
- Termination type: screw connection
- Conductor cross-section: 10, 16, 25 and 35 mm²
- AWG: 8, 6, 4 and 2
- Rated current: 66 A, 89 A, 100 A and 120 A
- CombiTac uniq with MULTILAM contact technology
- Specified for up to 100,000 mating cycles
