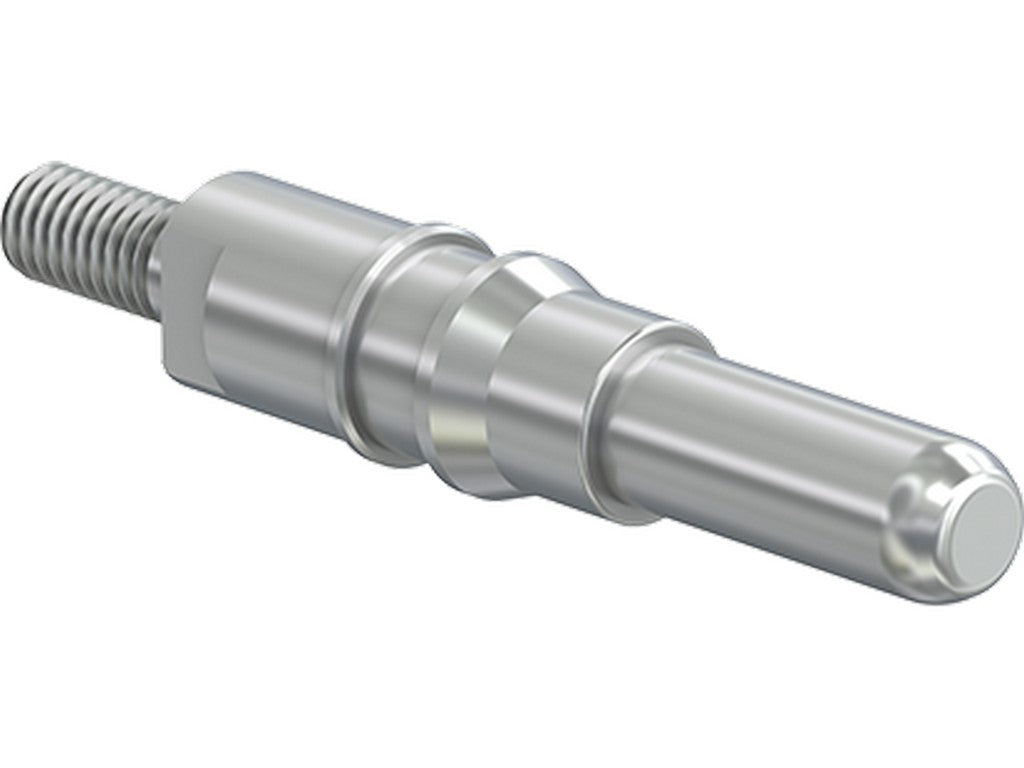

STAUBLI CombiTac CT-S8/M6A/PE AG
This is a contact module for Stäubli's CombiTac uniq system. The module is used when multiple connections need to be combined into one modular solution while still allowing the configuration to be adapted to the specific installation. In this case, it is a protective earth (PE) module, designed for professional interconnection where both current carrying capacity and repeated connection are required.
The module is rated for conductor cross-sections of 10 mm², 16 mm², 25 mm², and 35 mm², corresponding to AWG 8, 6, 4, and 2. In the catalog, the associated short-circuit currents are specified as 540 A, 860 A, 1300 A, and 1600 A. This makes it relevant for installations involving heavier connections and where a contact solution that can be integrated into a larger modular connector system is desired.
There are also some practical details worth noting. The nominal diameter is 6 mm / 8 mm, the contact resistance is specified as less than 250 μΩ / less than 150 μΩ, and the average mating force is 7.5 N and 5.5 N. The CombiTac uniq series is also specified for up to 100,000 mating cycles in Stäubli documentation, indicating a solution designed for repeated use in equipment and systems.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0519
- Series: CombiTac uniq
- Module type: contact module for protective earth (PE)
- Conductor cross-section: 10 mm², 16 mm², 25 mm², and 35 mm²
- AWG: 8, 6, 4, and 2
- Short-circuit current: 540 A, 860 A, 1300 A, and 1600 A
- Nominal socket/pin diameter: 6 mm / 8 mm
- Average mating force: 7.5 N and 5.5 N
- Contact resistance: < 250 μΩ / < 150 μΩ
- Mating cycles: up to 100,000
