STAUBLI 33.0564

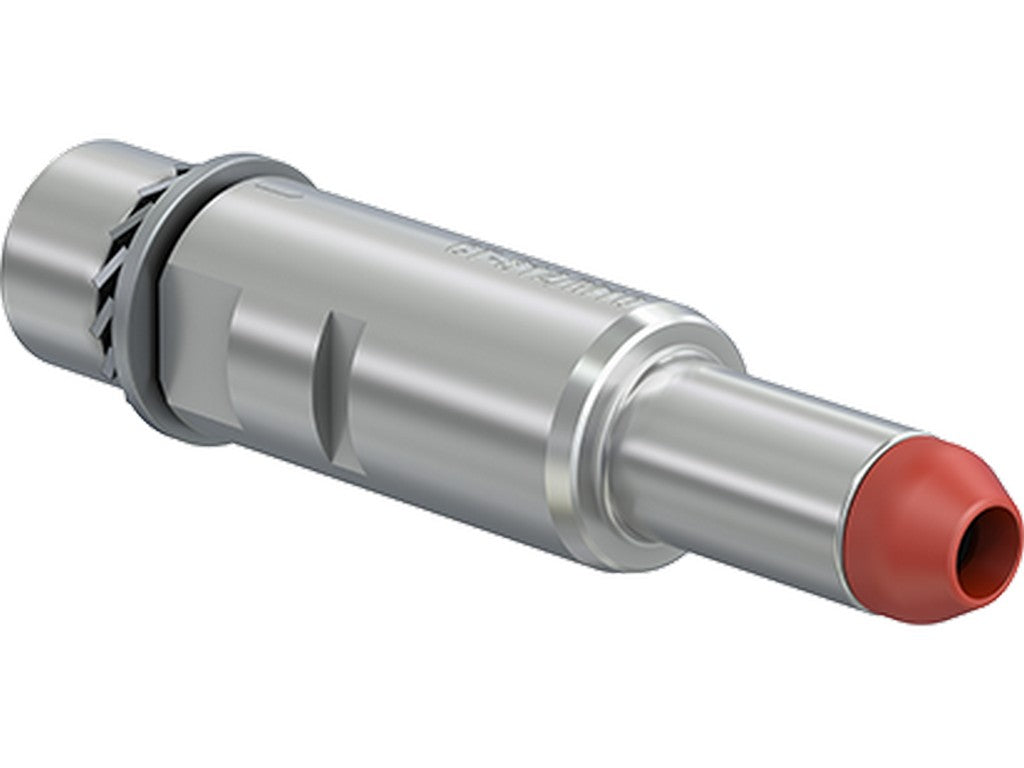

The STAUBLI 33.0564 is a contact insert for the CombiTac uniq series, specifically type CT-S12/M10 IP2X AG. It is used when a robust, modular connection is needed in a professional installation where a solid power connection is required within the same system as other connection types.
This is a 1-pole solution with nominal contacts of Ø 12 mm and screw connection via M10 internal thread. In practice, this means the connection is designed for mounting with cable lugs on Cu conductors, and it is made for the cable cross-sections specified in the catalog. It is rated for 50 mm², 70 mm², and 95 mm², with rated currents of 210 A, 260 A, and 310 A, respectively.
The CombiTac system is built around modular contact parts, allowing power, signal, and other connections to be assembled in the same frame. This concept makes the series suitable for more demanding installations where a well-engineered and service-friendly design is desired. For this contact insert, Stäubli specifies a contact life of up to 100,000 mating cycles for the CombiTac uniq family.
The IP2X protection on the front means there is basic touch protection on the contact side. This is a relevant detail in control panels and machine construction where live parts are handled, and more controlled handling is desired.
