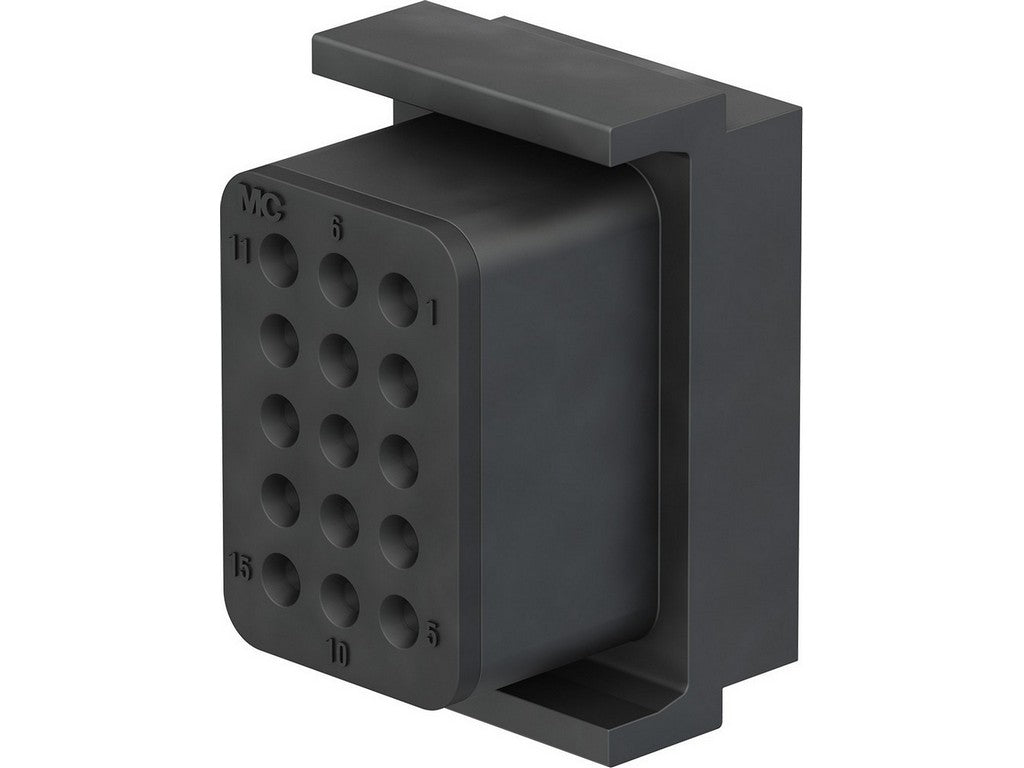

Contact Carrier CT-E1-15/B (33.4022) from STAUBLI
This contact carrier CT-E1-15/B (manufacturer's article number 33.4022) is a component of the Stäubli CombiTac uniq modular connector system. The primary function of the product is to receive and hold sockets (female contacts) for further assembly in CombiTac uniq configurations. The information is documented in Stäubli assembly instructions MA213-01.
Product Information and Assembly
The CT-E1-15/B is designed for inserting sockets into the contact carrier. According to the manufacturer's assembly instructions, sockets must be inserted manually by placing the contact carrier flat and pressing the sockets in by hand. It is explicitly stated that the special tool shown in illustration 4 is not suitable for this type of contact carrier. The assembly procedure and associated drilling/insertion instructions can be found in Stäubli MA213-01.
Typical Applications
- Insertion of sockets (female contacts) into the contact carrier CT-E1-15/B by manual assembly.
- Use in connection with the assembly of modules in Stäubli CombiTac uniq, where the CT-E1-15/B performs the function of the contact carrier.
Important Assembly and Handling Instructions
- Sockets must be inserted with the contact carrier placed flat and inserted manually; special insertion tools are not suitable (ill. 4).
- The assembly instructions contain drilling and insertion guidelines specifically for the CT-E1-15/B.
- Handling limits for contacts: Contacts must not be extracted more than twice and must not be inserted more than three times, cf. MA213-01.
Documentation
Further details on assembly, tools, and control measurements can be found in the official Stäubli assembly instructions MA213-01:
See datasheet from manufacturer
Specifications
- Product: Contact Carrier CT-E1-15/B
- Manufacturer: STAUBLI
- Manufacturer's article number: 33.4022
- System affiliation: Stäubli CombiTac uniq modular connector system
- Primary function: Receive/hold sockets (female contacts) for insertion
- Insertion method: Manual insertion with the contact carrier placed flat (special insertion tool not suitable, ill. 4)
- Handling limits: Contacts must not be removed more than 2 times and must not be inserted more than 3 times (cf. MA213-01)
- Documentation: Assembly instructions MA213-01 (Stäubli)
